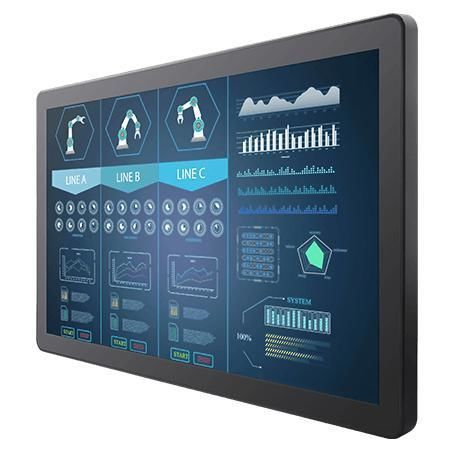

Multi-touch screen monitor W22L100-GCA3

PCAP capacitive touch screenfor displaysconstruction

Product summary
The Winmate W22L100-GCA3 is a 21.5-inch G-WIN GC-Series front IP65 PCAP industrial display for visualization, control rooms and equipment monitoring. It combines a Full HD 1920 x 1080 panel, projected capacitive multi-touch, front IP65 protection, fanless cooling and rugged construction for shock and vibration resistance.

Key features

• 21.5-inch 1920 x 1080 (FHD)
• Projected Capacitive (PCAP) multi-touch
• Front IP65 protection against dust and water
• VGA input standard; HDMI / DVI optional
• Fanless cooling design
• Rugged design compliant with MIL-STD-810G

Overview / Highlights
Edge-to-edge aluminum front with flat surface for easy cleaning and splash resistance. Waterproof M12 connectors and screw-on caps for robust I/O protection. Fanless design prevents dust circulation and improves reliability in harsh environments. Optical bonding with anti-moisture treatment and a reinforced coating enhance display durability and readability under industrial conditions.

Certifications

• CE
• FCC

Accessories (included / optional)

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Technical specifications

• Model: W22L100-GCA3
• Brand: Winmate
• Display size: 21.5-inch
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 16.7M colors
• Active area: 476.64 x 268.11 mm
• Operating humidity: 10% to 90% (non-condensing)
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -20 ~ 60 °C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP rating: Front IP65
• USB port: 1 x USB for touch screen
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Dimension: 530.2 x 321.7 x 54.9 mm
• Mounting: VESA mount / panel mount
• Enclosure: Plastic bezel & metal back cover
• Cooling system: Fanless design
• Power rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 keys (-, +, Power, Esc, Enter)
