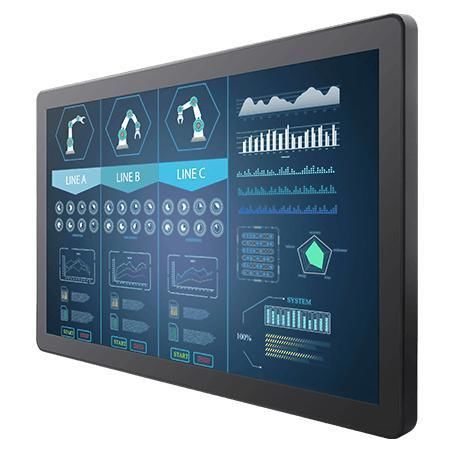

Multitouch screen monitor W24L100-GCA2

PCAP capacitive touch screenfor heavy-duty applicationsindustrial

Overview
Winmate W24L100-GCA2 is a 23.8-inch G-WIN GC-Series front IP65 Projected Capacitive (PCAP) multi-touch industrial display designed for industrial visualization, control rooms and equipment monitoring. It features a flat aluminum edge-to-edge front, front IP65 protection, fanless cooling and rugged I/O options for heavy-duty applications.

Key features

• 23.8 inches, 1920 x 1080 resolution PCAP multi-touch display
• VGA input (standard); HDMI and DVI optional
• Front IP65 protection and waterproof M12 connectors
• Fanless cooling and aluminum die-cast mechanical enclosure

Highlights & Benefits

• Flat aluminum edge-to-edge front for easy cleaning in industrial and hygienic environments
• Front IP65 rating protects against water and dust; waterproof connectors with screw-on caps for secure industrial connections
• Fanless design reduces internal dust circulation and improves reliability in dusty or harsh environments
• Optical bonding and anti-moisture treatment enhance durability against shock and vibration

Product presentation / Use cases
Suitable for industrial visualization, control rooms, HMI panels, equipment monitoring, OEM integrations and mission-critical installations where long lifecycle availability and rugged performance are required.

Certifications
CE, FCC

Accessories (included / optional)

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: Remote controller (product dependent)

Characteristics / technical specifications

• Model: W24L100-GCA2
• Brand: Winmate
• Touch / Glass: Projected Capacitive multi-touch
• Size: 23.8 inches
• Resolution: 1920 x 1080
• Brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89/89/89/89
• Display colors: 16.7M
• Buttons: 5 keys (-, +, Power, Esc, Enter)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Shock: 40g for 11ms
• Vibration: 1.48/1.90/2.24 g rms (XYZ), 5–500Hz
• IP rating: Front IP65
• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Dimensions: 588 x 358 x 55 mm
• Mounting: VESA mount; panel mount
• Enclosure: Plastic bezel & metal back cover
• Cooling: Fanless design
• Power: 12V DC in; 24V DC in (optional)
