Multitouch screen monitor W18L100-PTA2
PCAP capacitive touch screenwide viewing anglefor HMI interface

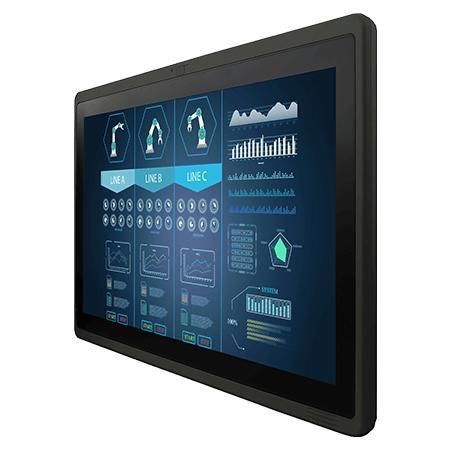

Multitouch screen monitor - W18L100-PTA2 - Winmate, Inc. - PCAP capacitive touch screen / wide viewing angle / for HMI interface
Multitouch screen monitor - W18L100-PTA2 - Winmate, Inc. - PCAP capacitive touch screen / wide viewing angle / for HMI interface
Multitouch screen monitor - W18L100-PTA2 - Winmate, Inc. - PCAP capacitive touch screen / wide viewing angle / for HMI interface - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
PCAP capacitive touch screen, multitouch screen
Applications
for HMI interface, wide viewing angle
Display size
18.5"
Resolution
1366 x 768
Mounting
VESA mounting, chassis-mounted
Other characteristics
HDMI, USB, VGA, DVI port, fanless, wide viewing angle, embedded, IP65
Width

467 mm
(18.3858 in)

Height

305 mm
(12.0079 in)

Thickness

35 mm
(1.378 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product Overview
Winmate W18L100-PTA2 is an 18.5-inch multi-touch chassis display designed for industrial visualization, control rooms and equipment monitoring. The unit combines a projected-capacitive multi-touch interface, legacy and modern video inputs, VESA mounting and front IP65 protection for integration into embedded and industrial systems.

Key Features
  • 18.5" display, 1366 x 768 resolution
  • Projected capacitive multi-touch (P-CAP)
  • Video inputs: VGA (default), HDMI (optional), DVI (optional)
  • Chassis type display with VESA mount support
  • Front protection rating: IP65
  • Panel brightness 450 nits, contrast ratio 1000:1

Certifications
  • CE
  • FCC

Highlights & Benefits
  • Low power consumption and fanless thermal design suitable for continuous operation in production environments
  • Universal VESA mounting for wall or panel installation
  • Multi-touch capability for intuitive HMI and operator interaction
  • Good image performance with 16.7M colors and wide viewing angles
  • Customization options: size, logo, panel brightness, glass surface treatment, display ports and regional power options

Technical specifications
  • Model: W18L100-PTA2
  • Manufacturer: Winmate
  • Display size: 18.5 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1366 x 768
  • Panel Brightness: 450.0 nits
  • Contrast Ratio: 1000:1
  • Viewing Angles: 85/85/80/80 (L/R/U/D)
  • Display Color: 16.7M Colors
  • Active Area: 409.8 x 230.4 mm
  • Front protection: IP65 (front)
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: -10 °C to 60 °C
  • USB Port: 1 x USB for touch screen
  • Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
  • Dimensions (W x H x D): 467 x 305 x 35 mm
  • Mounting: VESA mount
  • Enclosure: Plastic
  • Cooling System: Fanless design
  • Power rating: 12V DC in (standard); 24V DC in (optional)
  • Control / Buttons: 5 keys (-, +, Power, Esc, Enter)
  • Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
  • Optional accessory: Remote controller (varies by product)
