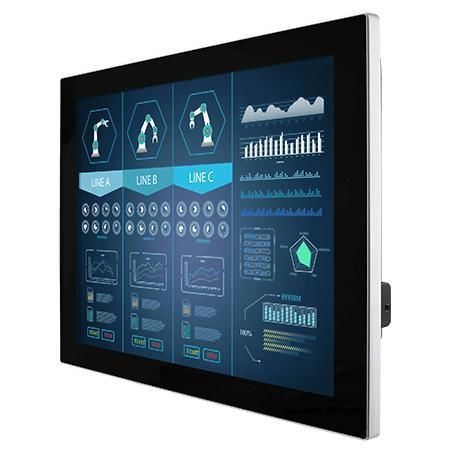

Multi-touch screen monitor R15L600-PCC3(HB)

PCAP capacitive touch screenindustrialfor industrial machines

Overview
The Winmate R15L600-PCC3(HB) is a 15" P-Cap multi-touch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It combines a true flat edge-to-edge front surface for easy cleaning with versatile I/O and options for long-term continuous operation in production environments.

Key Features

• 15" 1024 x 768 resolution with Projected Capacitive (P-Cap) multi-touch
• VGA input (default) with optional HDMI or DVI
• True flat, edge-to-edge glass front — easy to clean; front IP65
• Universal VESA mounting for wall or desk installation

Product Highlights
Low power consumption and effective heat dissipation make this display suitable for 24/7 industrial use.

Flexible mounting and multiple display port options allow quick integration into control panels, kiosks and machine HMIs.

Rugged chassis and MIL-STD tested shock/vibration resistance ensure reliability in factory and field environments.

Multiple customization choices (panel brightness, glass treatment, I/O and power input styles) support tailored configurations for specific applications.

Certifications

• CE
• FCC

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Protection Glass (Optional); Anti-glare Coating (Optional)
• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 300 nits (Default); 1000 nits (Optional)
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% (Non-Condensing)
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -20 °C ~ 60 °C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (Optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
