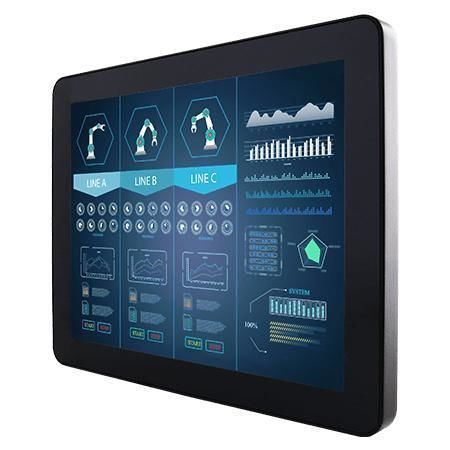

LCD monitor R10L100-PCT2(HB)

multitouch screenPCAP capacitive touch screenindustrial

Product Summary
R10L100-PCT2(HB) is a 10.4-inch industrial multi-touch chassis LCD monitor designed for industrial visualization, control rooms and equipment monitoring. It targets industrial buyers, OEMs and system integrators who require reliable operation in rugged, embedded or mission-critical environments. Core specifications include 1024 x 768 resolution, projected capacitive multi-touch (P-Cap), front IP65 protection, optional high-brightness 1000 nits panel, multiple video inputs and USB touch interface.

Key Features

• 10.4" 1024 x 768 industrial LCD monitor
• Optional high brightness: 1000 nits (default 350 nits)
• Projected Capacitive Multi-Touch (P-Cap)
• Front IP65 water and dust protection
• VGA input (default) and optional HDMI/DVI
• USB port for touch interface
• Metal enclosure, VESA mounting

Overview

• Low power consumption: Engineered for low power and efficient heat dissipation to support long-term continuous use in production environments.
• Flexible mounting: Universal VESA options for wall, panel or desk installation to simplify integration.
• Industrial reliability: Rugged metal enclosure and industrial-grade components with fanless design for dependable operation.
• Image quality: High-quality display module providing consistent color and readability at 1024 x 768 resolution.
• Customization: Options for panel brightness, glass treatment, I/O ports, power input and accessories to fit specific project requirements.

Certifications

• CE
• FCC

Technical specifications

• Model: R10L100-PCT2(HB)
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 10.4 inches
• Resolution: 1024 x 768
• Panel Brightness: 350 nits (default); 1000 nits (optional)
• Contrast Ratio: 1000:1
• View Angles: 88/88/88/88
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Dimensions: 252.41 x 197.8 x 43 mm
• Weight: 1.37 kg
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories (standard): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power Rating: 12V DC in; 24V DC in (optional)
• Buttons: 5 keys: -, +, Power, Esc, Enter
