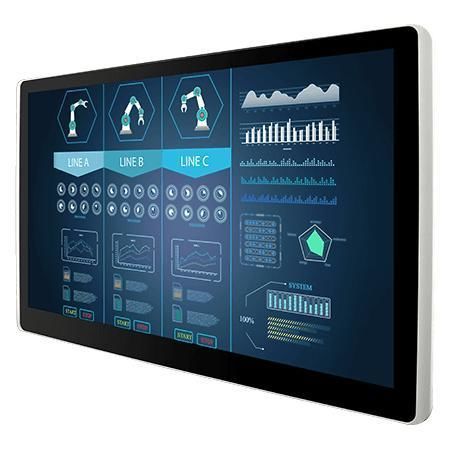

Multitouch screen monitor W15L100-PTA3

projected capacitive touchscreenindustrialfor displays

Short description
Winmate W15L100-PTA3 is a 15.6-inch chassis multi-touch display for industrial visualization, control rooms and equipment monitoring. It provides 1920 x 1080 Full HD resolution, projected capacitive multi-touch (P-CAP), VGA standard input with optional HDMI and front IP65 protection for industrial environments.

Key features

• 15.6-inch 1920 x 1080 (Full HD)
• Projected capacitive multi-touch (P-CAP) touchscreen (default)
• VGA input (default); HDMI input (optional)
• Front panel IP65
• 400 nits panel brightness; 800:1 contrast ratio
• Fanless design and VESA mounting

Overview
The display is engineered for low power consumption and effective heat dissipation for long-term operation in production and industrial facilities. Universal VESA mounting enables wall or desk installation. Optional configurations include anti-glare film, alternative video ports, speakers and different DC input options, allowing integration into embedded systems and OEM solutions.

Certifications

• CE
• FCC

Accessories (typical)

• VGA cable
• HDMI cable
• 100~240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)

Technical specifications

• Model: W15L100-PTA3
• Display size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Anti-glare Film (Optional)
• Resolution: 1920 x 1080
• Panel brightness: 400.0 nits
• Contrast ratio: 800:1
• View angles: 85/85/85/85
• Display color: 262K colors
• Active area: 344.16 x 193.59 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• USB port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: 1 x Audio Line In (Default); 2 x Speaker (Optional)
• Dimension: 387.8 x 232.9 x 40 mm
• Weight: 1.7 kg
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling system: Fanless design
• Power rating: 12V DC in (default); 24V DC in (optional)
• Buttons / Controls: 7 keys — Enter, Exit, Right, Left, Up, Down, Power
• Typical use cases: Industrial visualization, control rooms, equipment monitoring, embedded applications and OEM integrations
