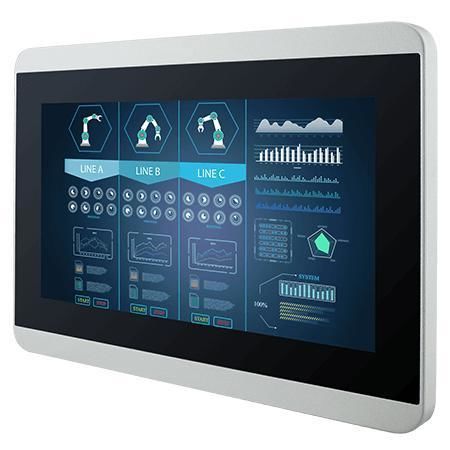

LCD monitor W07L100-PCO1HB

multitouch screenprojected capacitive touchscreenindustrial

Overview
The Winmate W07L100-PCO1HB is a 7" multi-touch chassis high-brightness display designed for industrial visualization, control rooms, equipment monitoring and outdoor-close applications. It integrates a 7" 1024 x 600 panel with 1000 nits brightness, Projected Capacitive multi-touch (P-Cap), front IP65 protection, multiple video inputs and a USB touch interface. The product targets rugged, embedded and mission-critical installations that require long lifecycle availability and stable hardware integration.

Key Features

• 7" 1024 x 600 resolution
• Panel brightness: 1000 nits
• Projected Capacitive multi-touch (P-Cap)
• Front panel IP65 (water and dust protection)
• VGA input (default); HDMI and DVI optional
• 1 x USB for touch
• Metal enclosure and VESA mounting

Product highlights / Benefits

• Low power consumption and fanless design for reliable long-term operation
• Universal VESA mounting and optional panel mount for flexible installation
• Rugged metal enclosure suitable for industrial environments
• Customizable options: panel brightness, glass surface treatment, display ports, mounting and enclosure variants

CERTIFICATIONS

• CE
• FCC

Technical specifications

• Model: W07L100-PCO1HB
• Brand: Winmate
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 7.0 inches
• Resolution: 1024 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 800:1
• View Angles: 85 / 85 / 85 / 85 (typical)
• Display Color: 16.7M colors
• Active Area: 152.2144 x 85.92 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 1 x Speaker (optional)
• Dimension: 189 x 154 x 39.8 mm
• Mounting: VESA mount (default); Panel mount (optional)
• Enclosure: Metal
• Cooling System: Fanless design
• Accessory (included): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (varies by product)
• Power Rating: 12V DC in
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
