Multi-touch screen monitor W32L100-PTA3

PCAP capacitive touch screenindustrial32"

Overview

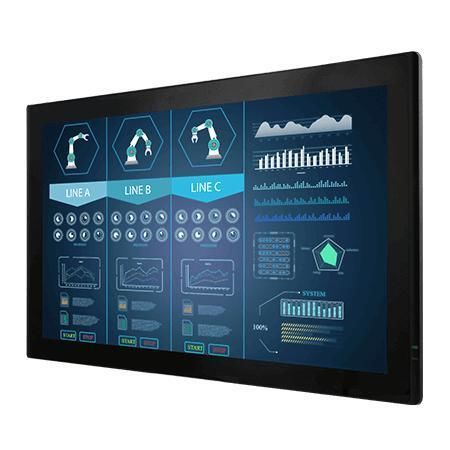

Winmate W32L100-PTA3 is a 32-inch multi-touch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It integrates a 1920 x 1080 Full HD panel with Projected Capacitive (P-CAP) multi-touch, a fanless and ventless enclosure for silent operation, an easy-to-clean front surface and front IP65 protection suitable for harsh front-facing environments.

Key Features

• 32" 1920 x 1080 P-CAP multi-touch chassis display
• Five bottom-side keys (-, +, Power, Esc, Enter)
• Fanless and ventless design; front surface designed for cleaning
• Video inputs: VGA (default); HDMI and DVI optional
• Front protection: IP65

Certifications

• CE
• FCC

Product Highlights

• Low power consumption and effective heat dissipation for continuous operation in industrial settings.
• Universal VESA mounting for wall or desk installation enabling flexible integration.
• Industrial-grade enclosure and assembly for high reliability in factory and control-room environments.
• 32" Full HD panel delivering clear detail and accurate colors for monitoring and visualization tasks.
• Configurable ports and options: VGA default, HDMI/DVI optional; panel brightness, glass treatment and power options customizable.

Technical specifications

• Model: W32L100-PTA3
• Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: 2 x Speaker
• Dimension: 799 x 478 x 63.7 mm
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Buttons: 5 Keys: -, +, Power, Esc, Enter
