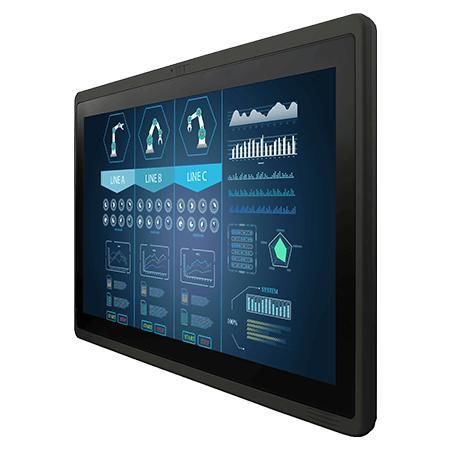

Monitor with touchscreen W18L100-PTA3

PCAP capacitive touch screenindustrialfor displays

Overview
Winmate W18L100-PTA3 is an 18.5" 1920 x 1080 Multi-Touch Chassis Display designed for industrial visualization, control rooms and equipment monitoring. It integrates a projected capacitive (PCAP) multi-touch panel, a chassis form factor with VESA mounting and a front IP65 protection level to suit harsh indoor industrial environments.

Key Features

• 18.5" 1920 x 1080 Full HD display
• Projected Capacitive (PCAP) multi-touch
• Standard VGA input; HDMI and DVI available as options
• Chassis display with VESA mount compatibility
• Front-side IP65 protection
• Optional high-brightness panel (500 nits)
• Fanless design for maintenance-free operation

Certifications

• CE
• FCC

Product Highlights
The unit is engineered for low power consumption and efficient heat dissipation to enable continuous operation in production and control environments.
Universal VESA mounting allows flexible installation on walls, consoles or panels.
Front IP65 protection and a chassis enclosure ensure resistance to dust and splashes at the user interface while retaining easy access for integration.
Multiple customization options are available, including panel brightness, glass surface treatment, display ports and power input variants to meet application-specific requirements.

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 18.5 inches
• Resolution: 1920 x 1080
• Panel Brightness: 500.0 nits (option)
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 408.96 x 230.04 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Dimension: 467 x 305 x 35 mm
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless Design
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Button: 5 Keys ( -, +, Power, Esc, Enter )
• Accessories (included): VGA cable; HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional)
