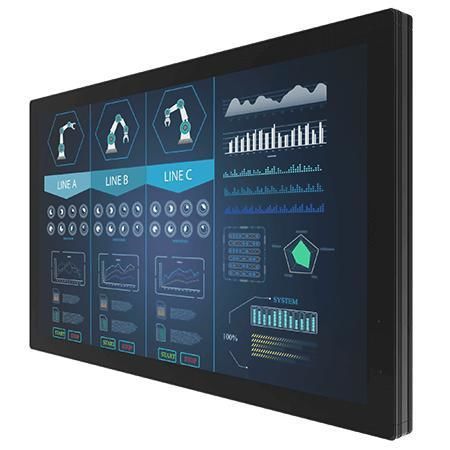

Multitouch screen monitor W43L100-PCA3
PCAP capacitive touch screenindustrialfor digital signage

Multitouch screen monitor - W43L100-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / industrial / for digital signage
Multitouch screen monitor - W43L100-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / industrial / for digital signage
Multitouch screen monitor - W43L100-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / industrial / for digital signage - image - 2
Multitouch screen monitor - W43L100-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / industrial / for digital signage - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
PCAP capacitive touch screen, multitouch screen
Applications
industrial, for industrial machines, for digital signage, for HMI interface
Display size
43"
Resolution
1920 x 1080
Mounting
VESA mounting, embedded
Other characteristics
HDMI, USB, VGA, DVI port, fanless, IP65
Width

1,028.8 mm
(40.5039 in)

Height

617 mm
(24.2913 in)

Thickness

48 mm
(1.89 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Overview
The Winmate W43L100-PCA3 is a 43" projected-capacitive multi-touch chassis display for industrial visualization, control rooms and equipment monitoring. Designed for embedded and mission-critical installations, it provides long-life hardware integration with front IP65 protection and a fanless metal enclosure.

Key features
  • 43" 1920 x 1080 resolution, 500 nits panel brightness
  • Projected Capacitive Multi-Touch (P-Cap) with 1 x USB touch interface
  • Front IP65 water and dust protection
  • Video inputs: 1 x VGA; 1 x HDMI; 1 x DVI (optional)
  • VESA mounting, metal enclosure and fanless cooling


Certifications
  • CE
  • FCC


Applications
  • Industrial visualization and machine HMI
  • Control rooms and monitoring stations
  • Embedded OEM systems and industrial digital signage


Installation & maintenance
Includes universal VESA mounting and standard accessory set (VGA cable, HDMI cable, 100–240V AC to DC adapter, power cord, manual, VESA screws). Fanless design reduces maintenance and supports continuous operation in production environments.

Technical specifications
  • Model: W43L100-PCA3
  • Brand: Winmate
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Size: 43 inches
  • Resolution: 1920 x 1080
  • Panel Brightness: 500 nits
  • Contrast Ratio: 4000:1
  • View Angles: 89/89/89/89
  • Display Color: 16.7M Colors
  • Active Area: 940.896 × 529.254 mm
  • Operating Humidity: 10% to 90% (non-condensing)
  • Operating Temperature: 0 ~ 50 °C
  • Storage Temperature: -20 ~ 60 °C
  • IP Rating: Front IP65
  • USB Port: 1 x USB for Touch Screen
  • Video Inputs: 1 x VGA; 1 x HDMI; 1 x DVI (Optional)
  • Audio: 2 x Audio (Optional)
  • Indicator: Power and status LEDs
  • Dimension: 1028.8 x 617 x 48 mm
  • Mounting: VESA Mount
  • Enclosure: Metal
  • Cooling System: Fanless Design
  • Power Rating: 24V DC in
  • Accessories Included: VGA cable; HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws
  • Optional Accessory: Remote Controller (optional)
  • Control Buttons: 5 Keys: -, +, Power, Esc, Enter
