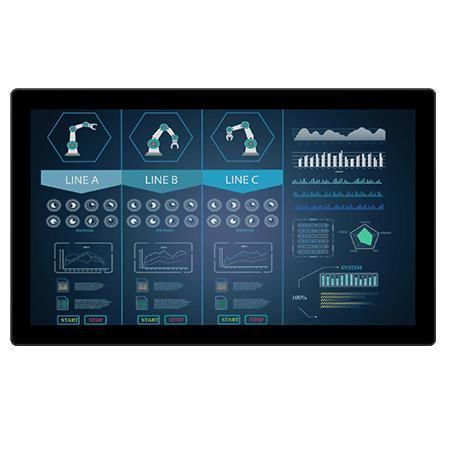

LCD monitor W24L100-PTA2

multitouch screenprojected capacitive touchscreenindustrial

Product Summary
Winmate W24L100-PTA2 is a 24-inch multi-touch chassis display designed for industrial visualization, control rooms and equipment monitoring. It delivers Full HD 1920 x 1080 resolution, projected capacitive multi-touch, front IP65 protection and multiple video input options for embedded and mission-critical installations.

Key Features

• 24" 1920 x 1080 Full HD resolution
• Projected capacitive multi-touch screen (P-CAP)
• VGA input (default); HDMI and DVI optional
• Front panel IP65 for dust and splash protection
• Universal VESA mounting for flexible installation

Certifications

• CE
• FCC

Overview
Low power consumption and effective heat dissipation support long-term, reliable operation in production floors and control rooms. The model is engineered for continuous use in industrial environments where availability and stability are critical.

Easy Mounting
Universal VESA mounting enables wall, panel or desk installation, simplifying integration into cabinets, control consoles and OEM systems.

High Reliability for Industrial Applications
Rugged enclosure and fanless design minimize maintenance and provide stable performance across typical industrial temperature and humidity ranges.

Outstanding Image Quality
Industrial-grade panel and precise assembly provide vivid colors, wide viewing angles and consistent image performance for monitoring and visualization tasks.

Display Ports and Customization
Customization options include product size, customer logo, LCD brightness, glass surface treatment, display port selection and country-specific power plug options. IO and audio configurations are available as standard or optional items.

Technical specifications

• Model: W24L100-PTA2
• Brand: Winmate
• Display size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080 (Full HD)
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89, 89, 89, 89
• Display color: 16.7M colors
• Active area: 527.04 x 296.46 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB port: 1 x USB for touch screen
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 2 x speaker (optional)
• Dimensions (W x H x D): 588 x 358 x 60 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling system: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
• Power rating: 12V DC in; 24V DC in (optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
