Multitouch screen monitor W27L100-PCA1

projected capacitive touchscreenIPS LCDindustrial

Product summary

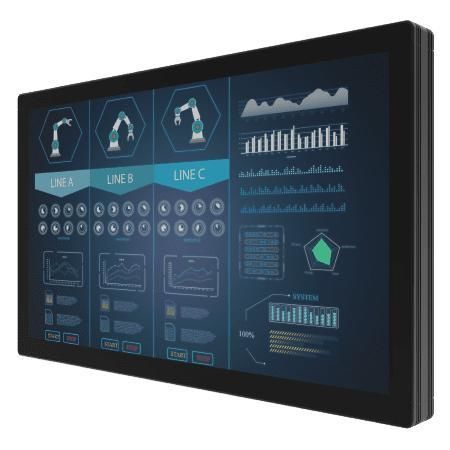

Winmate W27L100-PCA1 is a 27-inch multi-touch chassis display for industrial visualization, control rooms and equipment monitoring. It integrates a Full HD (1920 x 1080) IPS panel with projected capacitive multi-touch input and a front panel rated IP65 for protection against dust and water. The unit supports VGA input and optional HDMI/DVI, with a USB port for touch communication. Designed for continuous operation with a fanless metal enclosure and VESA mounting.

Key features

• 27" Full HD (1920 x 1080) IPS display
• Projected Capacitive Multi-Touch (P-Cap)
• Front IP65 protection
• VGA input; HDMI and DVI optional
• 1 x USB port for touch
• Fanless metal enclosure, VESA mount

Details
The display is optimized for industrial environments with energy-efficient operation and effective heat dissipation enabling long-term use. Universal VESA mounting allows wall or desk installation. The metal enclosure and fanless design reduce maintenance and increase reliability in dusty or demanding sites. Customization options include panel brightness, glass surface treatment, I/O configuration and branding to meet OEM or system integrator requirements.

Certifications

• CE
• FCC

Technical specifications

• Model: W27L100-PCA1
• Brand: Winmate
• Size: 27 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 300 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 599 x 337 mm
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -20 ~ 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI; 1 x DVI (Optional)
• Audio: 2 x Audio (Optional)
• Dimension: 675.4 x 413.4 x 48 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC input
• Accessories (standard): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional)
• Buttons: 5 Keys: -, +, Power, Esc, Enter
