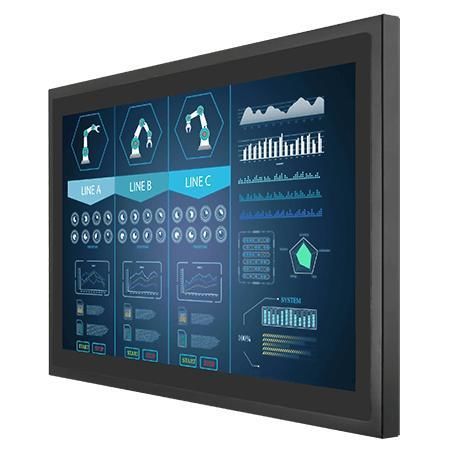

LCD monitor W24L100-PCA2

multitouch screenprojected capacitive touchscreenindustrial

Product Overview
Winmate W24L100-PCA2 is a 24.0-inch projected capacitive (PCAP) multi-touch chassis display for industrial visualization, control rooms and equipment monitoring. It provides Full HD 1920 x 1080 resolution, PCAP multi-touch input, multiple video inputs (VGA default; HDMI/DVI optional) and a metal chassis with VESA mounting for system integration.

Key Features

• 24.0 inches, 1920 x 1080 chassis display
• Projected capacitive (PCAP) multi-touch
• VGA input (default); HDMI and DVI optional
• VESA and chassis mounting options
• Fanless design and metal enclosure for industrial reliability

Highlights
Low power consumption
Designed for energy-efficient operation and effective heat dissipation to support long-term continuous use in production and control environments.

Easy mounting
Universal VESA mounting enables wall, desk or panel installation for flexible deployment across industrial applications.

Chassis mount display
Available with capacitive touch and optional resistive variants; configurable sizes, panel brightness and glass surface treatments to meet integration requirements.

High reliability for industrial applications
Rugged metal enclosure and fanless cooling provide dependable operation in factory and embedded installations; customization options available for specific use cases.

Outstanding image quality
Vibrant colors and clear imagery suitable for visualization and monitoring; display modules assembled in controlled environments for consistency.

Display ports and customization
Standard VGA and optional HDMI/DVI inputs, USB for touch interface, optional audio line-in and speakers. Custom options include panel brightness, glass treatment, power input variants and logo/branding.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) optional; 2 x speakers optional
• Mechanical Dimension: 616 x 385.5 x 44 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC in; 24V DC in (optional)
