Electric spinning machine DX-II

high-speed

Overview

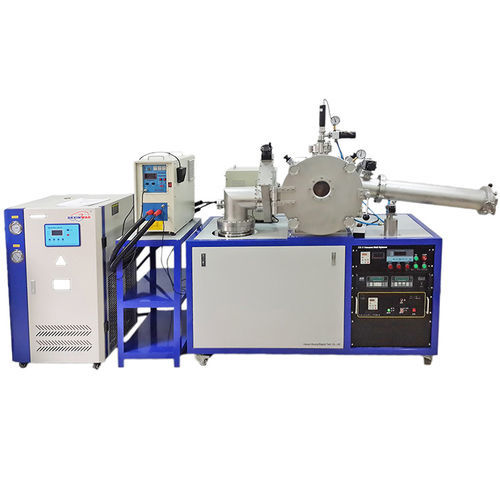

DX series Vacuum Melt Spinning System (DX-II) is laboratory equipment for preparing metastable and amorphous materials by ejecting molten metal/alloy onto a high-speed rotating copper roll under high vacuum, achieving extremely high cooling rates (10^4 K/s to 10^6 K/s) and enabling formation of amorphous/metastable phases.

Configuration of Vacuum Melt Spinning System:

• Stainless steel vacuum chamber
• Molecular pump (FF-200/1200) and mechanical pump (9L)
• Control cabinet with LED digital vacuum-meter
• Infrared thermometer and EV1000 frequency converter
• Melting-spinning oxygen-free copper wheel
• Blow-casting mold (including three mold cores, customizable)
• Magneto-fluid (water cooling)
• Spare parts (special tools and seal rings)
• Quartz tubes (50 pcs)
• Low-noise laboratory chiller

Note:
Users should prepare an Ar cylinder and a gas meter separately.

Technical indexes:

• Melt-spinning sample mass: 10–20 g
• Melting and blow-casting sample mass: 10–30 g
• Temperature measurement range: 600–2000 °C
• Working vacuum degree: 6.67×10⁻⁵ Pa
• Power source max. power: 30 kW; frequency: 30–80 kHz
• Maximum linear velocity at wheel edge: 0–70 m/s (adjustable)
• Melt-spinning track adjustable, adjustment range ≥ 5 mm
• Includes blow-casting system

Technical Specifications (components):

• Vacuum Chamber — Model: DX-Ⅱ; Main material: 1Cr18Ni9Ti; Size: Φ400×350 mm; Qty: 1
• Power (induction power source) — Model: SP-30; Power: 30 kW; Frequency: 30–80 kHz; Qty: 1
• Belt and spray casting system — Model: DX-Ⅱ; Main material: oxygen-free copper; Copper wheel: Φ220×34 mm; Belt speed: 0–70 m/s; Qty: 1
• Control Cabinet — Model: DX-Ⅱ; Included components mounted in rack; Qty: 1
• Ultra-high vacuum flashboard valve — Model: CC-150; Material: stainless steel; Application vacuum range: ~10⁵ ~ 6.7×10⁻⁶ Pa; Qty: 1
• Infrared Thermometer — Model: ATS; Temperature measurement range up to 2000 °C (site text notes 600–2000 °C); Qty: 1
• Frequency Converter — Model: EV1000; Input voltage: 380 V; Qty: 1
• Magneto-fluid (special water-cooling) — Sealed vacuum: 10⁻⁵ Pa; Qty: 1
• Suction piping — Model: DX-Ⅱ; Material: 1Cr18Ni9Ti; Integrated with vacuum chamber; Qty: 1
• Molecular Pump — Model: FF-200/1200; Material: stainless steel; Ultimate vacuum: 7×10⁻⁷ Pa; Qty: 1
• Mechanical Pump — Model: TRP-36; Material: carbon steel; Ultimate vacuum: 6×10⁻² Pa; Qty: 1
• Digital Vacuum Gauge — Model: ZDF-5227B; Electron device type; Measuring span: ~10⁵ – 10⁻⁵ Pa (includes 2 resistance gauges and 1 ionization gauge); Qty: 1
• Air Storage Tank — Model: DX; Material: 1Cr18Ni9Ti; Includes tanks, manual valve, electromagnetic isolation valve, positive/negative pressure gauge; Qty: 1

Characteristics / technical specifications:

• Model / Commercial designation: DX-II
• Intended use: preparation, research and development of metastable/amorphous materials (rare-earth permanent magnets, amorphous soft magnetic materials, nanometric materials, etc.)
• Cooling rate: typically 10^4 K/s to 10^6 K/s (rapid quenching onto rotating copper roll)
• Sample sizes: melt-spinning 10–20 g; melting/blow-casting 10–30 g
• Temperature measurement range: 600–2000 °C
• Working vacuum: typically down to ~6.67×10⁻⁵ Pa (system components provide higher/lower ultimate vacua as listed)
• Induction power source: up to 30 kW, 30–80 kHz
• Copper wheel: oxygen-free copper, Φ220×34 mm; edge linear velocity adjustable 0–70 m/s
• Melt-spinning track adjustment: adjustable distance ≥ 5 mm
• Includes molecular pump (FF-200/1200), mechanical pump (TRP-36), digital vacuum gauge (ZDF-5227B) and accessories (quartz tubes, molds, spare seals, chiller)
