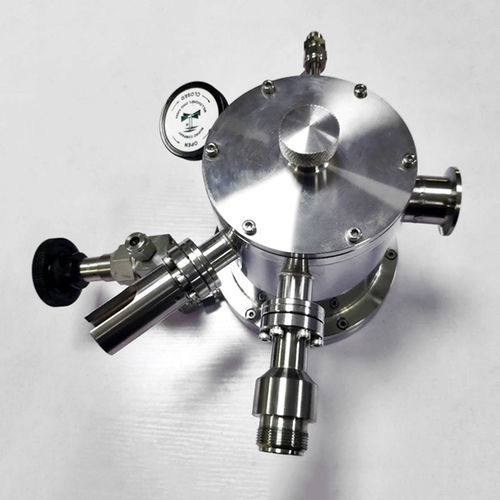

Metal sintering DXSF-1200graphiteceramicfor the aerospace industry
Add to favorites
Compare this product
Characteristics
- Treated material
- metal, graphite, ceramic
- Applications
- for the aerospace industry, industrial, for electronics
- Certifications
- ISO 9001
- Production method
- prototyping, small series
Description
Overview
Main structure
Heating, insulation and temperature control
Vacuum system
Inflating (gas) system
Mold, pressurization and cooling
Applications and capabilities
Technical specifications
- The DXSF-1200 is a vertical, fully automated vacuum hot-press sintering furnace designed for vacuum, inert-gas (argon, nitrogen) or air sintering and hot-press molding of ceramics, refractory metals and powder-metallurgy materials. Intended for laboratory, R&D and small-scale production.
Main structure
- Construction: stainless-steel furnace body with brushed finish.
- Main components: furnace body and cover, heating/insulation/temperature system, vacuum system, gas inflation system, water cooling, control system, and hydraulic/pneumatic pressurization system.
Heating, insulation and temperature control
- Heating: resistance-wire heating for temperature uniformity; heating element: Swedish Kanthal A1 (imported).
- Insulation: high-purity alumina polycrystalline fiber formed by vacuum suction filtration to minimize particle shedding and ensure thermal stability; resistance-wire spacing optimized via thermal simulation.
- Control & measurement: Dexinmag programmable temperature controller (standard) with 30-segment programming, intelligent PID, over-temperature and burnout protection, 485 communication (software optional), power-off protection; thyristor control and digital display. PLC touch-screen control and data logging for process analysis.
Vacuum system
- Includes mechanical pump, inflation/deflation/vacuum valves, vacuum gauges, bellows, pipelines and supports.
- Using FX-series vacuum pump: cavity pressure can reach <100 Pa.
- Vacuum gauge: ZDR-1 resistance vacuum gauge, range 0.1 Pa ~ 1×10^5 Pa.
Inflating (gas) system
- Pipeline and valve assembly; optional explosion-proof configuration. Automatic venting when pressure exceeds safety limit. Needle valve on the gas line; optional flow meter for controlled argon/nitrogen atmosphere.
Mold, pressurization and cooling
- Mold: high-purity graphite high-temperature mold; working pressure up to 50 MPa.
- Pressurization: pressure and hold time programmable via touch screen; maximum pressing stroke 100 mm; indenter diameter 60 mm; pressure accuracy ±100 Kg; example indicated pressure up to 5 MPa gauge.
- Water cooler: cooling-water rated pressure 0.1 – 0.2 MPa.
Applications and capabilities
- Suitable for vacuum or inert-atmosphere sintering of transparent and technical ceramics, refractory-metal alloys, silicon carbide, silicon nitride and other high-temperature materials; sintering, annealing, brazing and degassing of powders/compacts below main-component melting point.
Technical specifications
- Model: DXSF-1200
- Power: 160 W
- Heating zone size: Φ90 × 110 mm
- Sample area size: Φ12 × 70 mm (customizable)
- Overall dimensions (L×W×H): 140 × 115 × 145 (as provided)
- Voltage: 220 V
- Phase: Single-phase
- Heating element: Swedish Kanthal A1 resistance wire
- Temperature control: Dexinmag programmable controller (standard), 30-segment program, intelligent PID, over-temp and burnout protection, 485 communication, power-off protection
- Control precision: ±0.1 ℃
- Maximum working temperature: up to 600 ℃ (rated 500 ℃)
- Heating rate: ≤20 ℃/min (customizable); recommended ≤10 ℃/min
- Thermocouple: Type K
- Heating section length: 205 mm
- Vacuum capability: cavity <100 Pa with FX pump; vacuum gauge range 0.1 Pa ~ 1×10^5 Pa
- Mold material & pressure: high-purity graphite; working pressure up to 50 MPa
- Max pressing stroke: 100 mm
- Indenter size: 60 mm
- Pressure accuracy: ±100 Kg
- Water cooler rated pressure: 0.1 – 0.2 MPa
- Certification: ISO9001
- Surrounding surface temperature: ≤55 ℃
