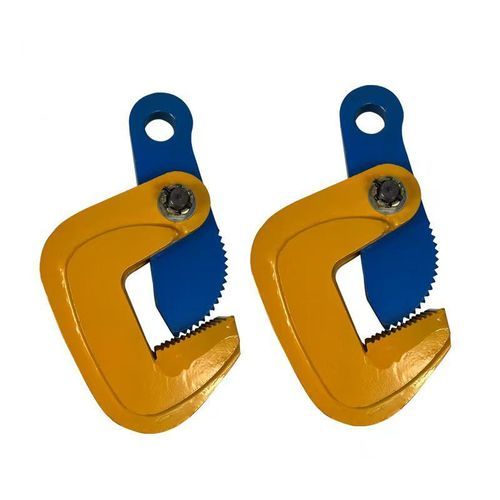

Profile lifting clamp LA

for steel plateshorizontal

Product overview
The LA Horizontal Plate Clamp by TOPONE is designed for horizontal lifting and transport of steel plates and profiled bars. Constructed from carbon steel, it is rated for a Working Load Limit (WLL) range of 1–10 t and incorporates an anti-collision mechanism to reduce the risk of slippage during handling.

Introduction
Working Load Limit (WLL): 1–10 t
Application: horizontal lifting and transport of plates and structural steel
Material: carbon steel
Design: lightweight for easy handling and simple operation
Safety: anti-collision mechanism and locking features to secure the load during lifting

Parameter
Model | Combined Rated Load of 4 Units (t) | Opening Diameter (mm) | Net Weight (kg)
LA1 | 1 | 0–30 | 4.2
LA2 | 2 | 0–50 | 6.2
LA3.2 | 3.2 | 0–60 | 9.3
LA5 | 5 | 0–80 | 12.3

Features / technical specifications

• Working Load Limit (WLL): 1–10 t
• Application: horizontal lifting and transport of steel plates and profiled bars
• Material: carbon steel
• Design: lightweight construction for easier handling and operation
• Safety: anti-collision mechanism and load-locking feature to reduce slippage risk
• Available models and key parameters:
  • LA1 — Combined Rated Load of 4 Units: 1 t; Opening Diameter: 0–30 mm; Net Weight: 4.2 kg
  • LA2 — Combined Rated Load of 4 Units: 2 t; Opening Diameter: 0–50 mm; Net Weight: 6.2 kg
  • LA3.2 — Combined Rated Load of 4 Units: 3.2 t; Opening Diameter: 0–60 mm; Net Weight: 9.3 kg
  • LA5 — Combined Rated Load of 4 Units: 5 t; Opening Diameter: 0–80 mm; Net Weight: 12.3 kg
