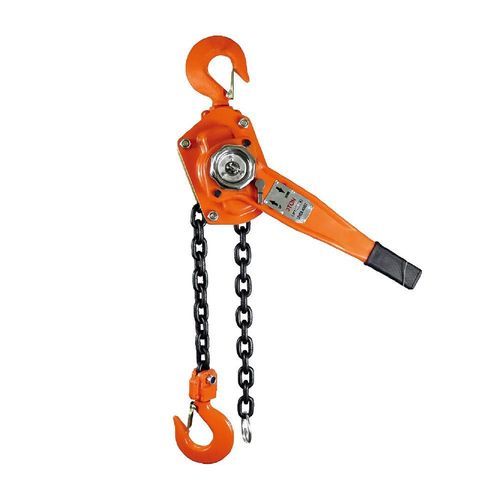

Manual chain hoist HSH-VA

levercorrosion-resistant1

Product Description
The HSH-VA lever block chain hoist is a manual lifting device designed for precise, reliable handling of loads from 0.5 t to 6 t. It integrates a torque control mechanism, heat-treated overload-resistant hook, shockproof gear and brake housings, and anti-rust chain treatment to ensure safe operation in industrial environments.

Key Features

• Torque control mechanism for controlled load management
• Heat-treated hook to maintain safety under overload conditions
• Shockproof gear housing and brake housing to protect against dust and rain
• Rubber anti-slip handle for secure manual operation
• High braking force with easy adjustment and anti-rust treatment
• Special brake design to reduce wear
• Chain locating pin to protect the machine head
• Rust-proof chain with special surface treatment for heavy lifting
• Stable device to prevent chain winding during hoisting

Operation & Standards
Lever hoists operate via a ratchet and gear mechanism driven by an attached handle. Cranking the lever rotates internal ratchets to raise or lower the load; reversing the internal gear changes lifting direction. The end hook secures the load during handling. HSH-VA lever blocks can be customized to meet specific customer requirements and comply with applicable industrial safety standards.

Technical Parameters
Model: VA-0.5T | VA-0.75T | VA-1T | VA-1.5T | VA-2T | VA-3T | VA-6T
Capacity (t): 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6
Standard lift (m): 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5
Running test load (t): 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9
No. of falls of load chain: 1 | 1 | 1 | 1 | 1 | 1 | 2
Load chain diameter (mm): 5 | 6 | 6 | 8 | 8 | 10 | 10
Dimension (mm) A: 102 | 148 | 148 | 176 | 176 | 195 | 195
Dimension (mm) B: 80 | 87.5 | 87.5 | 102 | 102 | 109 | 109
Dimension (mm) C: 95 | 135 | 135 | 157 | 57 | 210 | 253
Net weight (kg): 3.5 | 7 | 7.5 | 11 | 12 | 19 | 32
Packing (L*W*H) (CM): 34*14*17 | 37*14*17 | 37*14*17 | 52*14*18 | 24*14*18 | 55*16*21 | 55*16*21

Specifications

• Product name: HSH-VA Lever Block Chain Hoist
• Brand: TOPONE CHAIN
• Model series: HSH-VA
• Available models: VA-0.5T, VA-0.75T, VA-1T, VA-1.5T, VA-2T, VA-3T, VA-6T
• Capacity range: 0.5 t to 6 t
• Standard lift: 1.5 m (all models)
• Running test load (per model): 0.75 t, 1.125 t, 1.5 t, 2.25 t, 3 t, 4.5 t, 9 t
• No. of falls of load chain: 1 fall (most models), 2 falls (VA-6T)
• Load chain diameters: 5 mm, 6 mm, 8 mm, 10 mm depending on model
• Dimensions (A x B x C in mm) and net weights per model as listed above
• Packing dimensions (cm) per model listed above
