Manual chain hoist HSZ-K

handcompact1

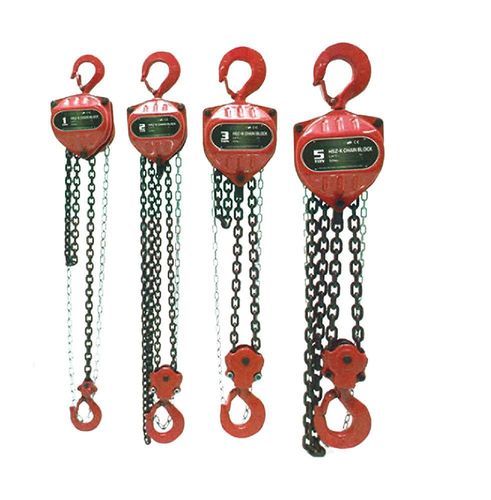

Overview The HSZ-K hand chain hoist offers capacities from 0.5 t to 20 t depending on model. Compact design that conforms to international standards. Equipped with a brake disc, alloy steel load chain and galvanized hand chain. Hooks are drop-forged and heat-treated to provide high load strength and extended service life.

Introduction

• Load range: 0.5 t to 20 t
• Compact design compliant with relevant world standards
• Brake disc, alloy steel load chain and galvanized hand chain
• Drop-forged, heat-treated hooks for high load strength and long service life

Parameter MODEL | HSZ-K1/2 | HSZ-K1 | HSZ-K1 1/2 | HSZ-K2 | HSZ-K3 | HSZ-K5 | HSZ-K10
CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10
Standard lift(m) | 2.5 | 2.6 | 2.5 | 3 | 3 | 3 | 3.5
Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5
Min.distance between hooks(mm) | 225 | 306 | 368 | 444 | 486 | 616 | 700
Chainpull to lift full load(n) | 221 | 304 | 343 | 314 | 343 | 383 | 392
No. of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4
Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10
Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77
Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85
Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 70*45*75

Technical specifications

• Series / Model: HSZ-K (examples: HSZ-K1/2, HSZ-K1, HSZ-K1 1/2, HSZ-K2, HSZ-K3, HSZ-K5, HSZ-K10)
• Load range: 0.5 t to 20 t
• Standard lift: 2.5 m to 3.5 m depending on model
• Test load: 0.75 t to 12.5 t depending on model
• Minimum distance between hooks: 225 mm to 700 mm depending on model
• Chain pull to lift full load: 221 N to 392 N depending on model
• Number of load chain fall lines: 1, 2 or 4 depending on model
• Diameter of load chain: 6 mm, 8 mm or 10 mm depending on model
• Standard components: brake disc, alloy steel load chain, galvanized hand chain, drop-forged and heat-treated hooks
• Net weight per model: 8.4 kg to 77 kg
• Gross weight per model: 9.4 kg to 85 kg
• Packing dimensions vary by model (see values above)
