Manual chain hoist HSZ series

handheavy-duty1

Product description

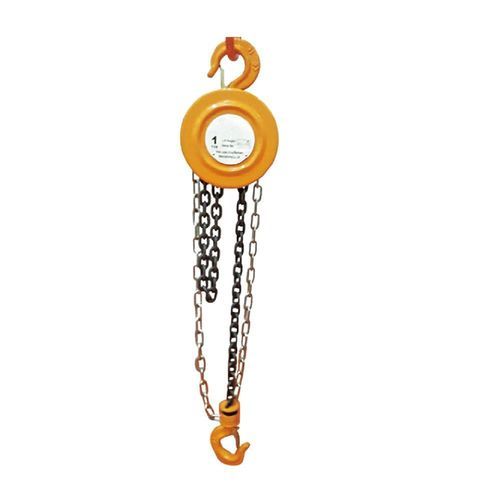

The HSZ Hand Chain Hoist features a round-gourd housing inspired by Chinese design and allows lifting heavy loads with minimal operator effort. It is fitted with alloy steel load chains and standard galvanized components. The lifting hook is drop-forged and heat-treated to provide reliable performance and extended service life. Capacity range: 0.5 t to 20 t, with 30 t and 50 t options for heavy-duty equipment. Models HAZ-1/2 to HAZ-10 are available with various capacities, standard lifts and specifications to fit different applications.

Introduction

• Chinese-style round-gourd housing
• Small operator force required to lift large weights
• Alloy steel load chain and standard galvanized finish
• Drop-forged, heat-treated hook for enhanced service life
• Capacity range from 0.5 t to 20 t; 30 t and 50 t available for heavy machinery

Parameter
MODEL | HAZ-1/2 | HAZ-1 | HAZ-1 1/2 | HAZ-2 | HAZ-3 | HAZ-5 | HAZ-10
CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10
Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5
Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5
Min.distance between hooks(mm) | 240 | 275 | 340 | 380 | 475 | 600 | 700
Chainpull to lift full load(n) | 25 | 33 | 34 | 34 | 35 | 39 | 41
No. of load chain fall lines(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4
Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10
Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77
Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85
Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 62*50*28

Features / Technical specifications

• Model series: HAZ-1/2, HAZ-1, HAZ-1 1/2, HAZ-2, HAZ-3, HAZ-5, HAZ-10
• Capacity range: 0.5 t to 10 t in table (also available up to 20 t; heavy machinery 30 t and 50 t)
• Standard lift: 2.5 m–3.5 m depending on model
• Load chain material: alloy steel
• Finish: standard galvanized
• Hook: drop-forged and heat-treated for long service life
• Chain diameter: 6 mm, 8 mm or 10 mm depending on model
• Net weight examples: 8.4 kg to 77 kg depending on model
• Packing dimensions provided per model (L*W*H in cm)
