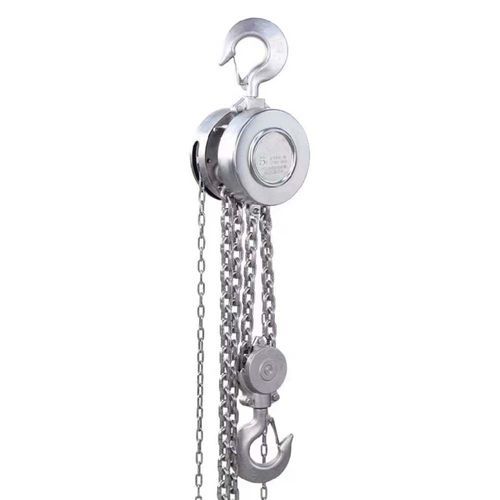

Manual chain hoist TOP series

corrosion-resistantstainless steelfor food industry applications

Product description
The stainless steel chain hoist is designed for lifting in clean and corrosive environments where hygiene and long-term corrosion resistance are essential. Manufactured from high-grade 304 or 316 stainless steel, it is suitable for food processing, marine, chemical, and pharmaceutical sectors. The hoist provides smooth manual operation, precise load control and reliable performance in harsh conditions.

Applications

• Food processing – suitable for handling ingredients and equipment without risk of contamination.
• Marine and shipbuilding – reliable operation in saline, humid and offshore environments.
• Pharmaceutical production – compatible with hygiene requirements for cleanroom lifting tasks.
• Chemical plants – resists chemical exposure for safe load handling.
• Outdoor and harsh environments – designed for long-term use in moist or extreme weather conditions.

Parameters
Model
TOP-0.5M | TOP-1M | TOP-1.5M | TOP-2M | TOP-3M | TOP-5M
Capacity (t)
0.5 | 1 | 1.5 | 2 | 3 | 5
Standard lift height (m)
3 | 3 | 3 | 3 | 3 | 3
Test load (kN)
6.25 | 12.5 | 18.8 | 25 | 37.5 | 62.5
Load chain size (mm)
6x18 | 7x21 | 9x27 | 7x21 | 9x27 | 10x30
Hand chain size (mm)
5x23.3 (all models)
Net weight (kg)
11 | 13 | 16.5 | 19.5 | 31.5 | 60
Dimensions (mm) - A | B | C | D | H min
TOP-0.5M: 142 | 131.5 | 26 | 40 | 360
TOP-1M: 172 | 151 | 26 | 40 | 376
TOP-1.5M: 196 | 173 | 29.5 | 45 | 442
TOP-2M: 192 | 151 | 34 | 50 | 425
TOP-3M: 230 | 173 | 39 | 55 | 565
TOP-5M: 365 | 189 | 41 | 65 | 710

Standards
Specified to appropriate industry standards for stainless steel lifting equipment and corrosion-resistant components.

Technical specifications

• Models: TOP-0.5M, TOP-1M, TOP-1.5M, TOP-2M, TOP-3M, TOP-5M.
• Material: 304 or 316 stainless steel for corrosion resistance and hygiene.
• Capacities: 0.5 t, 1 t, 1.5 t, 2 t, 3 t, 5 t.
• Standard lift height: 3 m (standard for all listed models).
• Test loads (kN): 6.25 (0.5 t), 12.5 (1 t), 18.8 (1.5 t), 25 (2 t), 37.5 (3 t), 62.5 (5 t).
• Load chain sizes (mm): 6x18 (0.5 t), 7x21 (1 t & 2 t), 9x27 (1.5 t & 3 t), 10x30 (5 t).
• Hand chain size (mm): 5x23.3 (all models).
• Net weight (kg): 11 (0.5 t), 13 (1 t), 16.5 (1.5 t), 19.5 (2 t), 31.5 (3 t), 60 (5 t).
• Dimensions (mm) - A/B/C/D/H min: TOP-0.5M 142/131.5/26/40/360; TOP-1M 172/151/26/40/376; TOP-1.5M 196/173/29.5/45/442; TOP-2M 192/151/34/50/425; TOP-3M 230/173/39/55/565; TOP-5M 365/189/41/65/710.
• Recommended applications: food processing, marine, pharmaceutical, chemical, outdoor/harsh environments.
