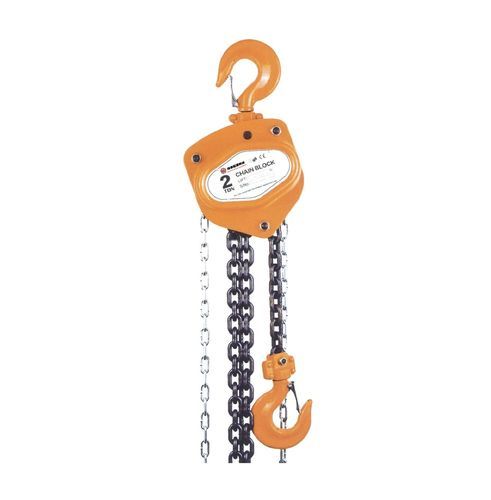

Manual chain hoist HSZ-A series

handheavy-dutycompact

Product Description
The HSZ-A hand chain hoist is a compact, heavy-duty manual lifting solution available in capacities from 0.5 to 20 tons, with additional heavy-duty models at 30 t and 50 t. It is built to international standards and incorporates a disc brake, high-grade alloy steel load chain and a galvanized hand chain. Hooks are drop-forged and heat-treated for high load strength and extended service life.

Introduction

• Load range: 0.5 t to 20 t; heavy-duty options: 30 t and 50 t.
• Compact heavy-duty construction compliant with international standards.
• Reliable disc brake system for controlled load holding.
• Standard high-grade alloy steel load chain and galvanized hand chain for durability.
• Drop-forged, heat-treated hook for high strength and long service life.

Parameter
MODEL: HSZ-A1/2 | HSZ-A1 | HSZ-A1 1/2 | HSZ-A2 | HSZ-A3 | HSZ-A5 | HSZ-A10
CAPACITY (t): 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10
Standard lift (m): 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5
Test load (t): 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15
Min. distance between hooks (mm): 285 | 315 | 340 | 380 | 475 | 600 | 700
Chainpull to lift full load (n): 25 | 33 | 34 | 34 | 35 | 39 | 41
No. of load chain fall lines: 1 | 1 | 1 | 1 | 2 | 2 | 4
Diameter of load chain (mm): 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9
Net weight (kg): 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77
Gross weight (kg): 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85
Packing (L*W*H) (cm): 30*17*32 | 30*17*32 | 30*17*32 | 28*19*23 | 30*17*32 | 40*20*34 | 62*50*26

Technical features/specifications

• Series: HSZ-A hand chain hoist (models HSZ-A1/2 to HSZ-A10).
• Load capacity range and heavy-duty variants as listed.
• Construction: heavy-duty and compact design meeting international standards.
• Brake: reliable disc brake for load control.
• Chain: standard high-grade alloy steel load chain.
• Hand chain: galvanized hand chain for corrosion resistance.
• Hook: drop-forged and professionally heat-treated for high load strength and long service life.
• Example HSZ-A1/2: capacity 0.5 t; net weight 8.4 kg; standard lift 2.5 m; chain diameter 6.3 mm.
