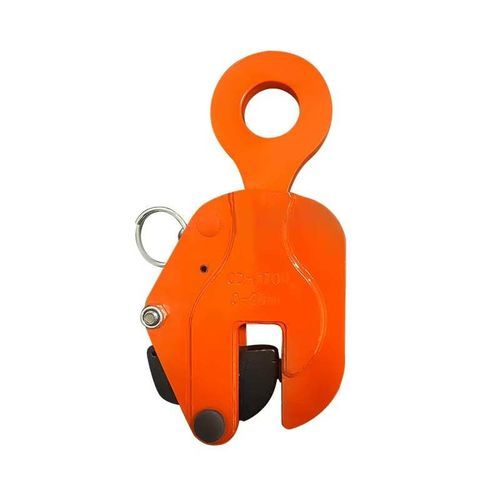

Beam lifting clamp CDH

for steel platesverticalmechanical

Overview
The CDH Vertical Plate Clamp by TOPONE is engineered for safe vertical lifting of single steel plates and beams. It uses a spring-loaded locking mechanism and a die-forged alloy steel body with a hardened cam to ensure durable grip and long service life.

Introduction

• Working Load Limit (WLL): 0.8 – 16 t (model-dependent)
• Designed for vertical lifting of individual steel plates and beams
• Spring-loaded lock prevents slippage; lock remains engaged whether clamp is open or closed
• Die-forged alloy steel body with hardened cam for extended wear resistance

Parameter

• Model — Combined rated load of two units (t) — Opening diameter (mm) — Net weight (kg)
• CDH1 — 1 — 0–20 — 5.2
• CDH2 — 2 — 0–30 — 7.3
• CDH3 — 3 — 0–35 — 10
• CDH5 — 5 — 0–50 — 16.5
• CDH8 — 8 — 0–60 — 25.5
