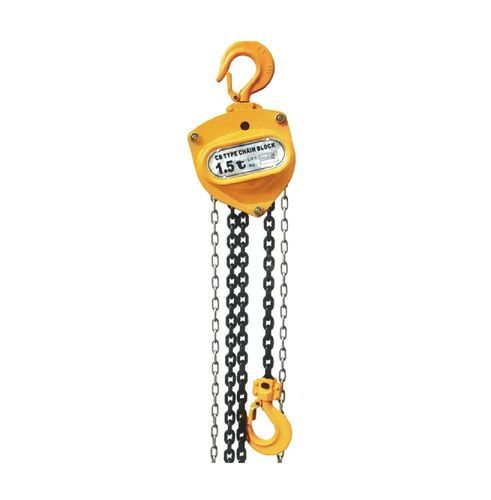

Manual chain hoist HSC-CB

handheavy-dutycompact

Product Overview
The HSC-CB Hand Chain Hoist provides manual lifting capacities from 0.5 Ton to 20 Ton, with dedicated heavy-duty versions at 30 Ton and 50 Ton. The unit features a dependable brake disc, a high-grade alloy steel load chain, a galvanized hand chain, and forged, heat-treated hooks to ensure long service life. Multiple CB-I models (1T–10T) cover a range of capacities, lifting heights and configurations for industrial lifting applications.

Introduction

• Working load: 0.5 Ton to 20 Ton; heavy-duty versions: 30 Ton and 50 Ton.
• Robust, compact design compliant with relevant international standards.
• Reliable brake disc for secure load holding.
• Standard high-grade alloy steel load chain; number of chain strands varies by model.
• Galvanized hand chain for corrosion resistance.
• Forged and heat-treated hooks for high strength and extended service life.

Parameter
MODEL | CB-I 1T | CB-I 1.5T | CB-I 2T | CB-I 3T | CB-I 5T | CB-I 10T
CAPACITY (t) | 1 | 1.5 | 2 | 3 | 5 | 10
Lifting height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3
Load chain - No. of strands | 1 | 1 | 1 | 1 | 2 | 4
Chain dimension | 6×18 | 7.1×21 | 8×24 | 10×30 | 9×27 | 10×30
Pull force (kg) | 250 | 265 | 335 | 372 | 360 | 380
N.W / G.W (kg) | 14.5 / 15 | 16.5 / 17 | 19.5 / 20.1 | 32 / 34 | 41.1 / 43.6 | 75.7 / 79.1
Dimension (mm) A | 149 | 176 | 176 | 231 | 249 | 463
Dimension (mm) B | 153 | 173 | 173 | 185 | 185 | 185
Dimension (mm) C | 29 | 35 | 35 | 39 | 49 | 54
Dimension (mm) D | 41 | 51 | 51 | 49 | 67 | 75
Hmin (mm) | 352 | 385 | 385 | 445 | 615 | 765
Additional weight per 1m lift (kg) | 0.8 | 1.1 | 1.4 | 2.2 | 3.8 | 8.8

Standards
Manufactured to comply with relevant international lifting-equipment standards and industry practices (e.g., applicable EN/ISO standards); final conformity depends on selected model and configuration.

Characteristics / technical specifications

• Wide working load range from 0.5 t to 20 t; heavy-duty options at 30 t and 50 t.
• Compact, heavy-duty design suitable for industrial applications.
• Reliable brake disc for safe load control.
• High-grade alloy steel load chain; configuration differs by model (1, 2 or 4 strands).
• Galvanized hand chain for improved corrosion resistance.
• Forged hooks with professional heat treatment for high tensile strength and long service life.
• Available model series: HSC-CB Hand Chain Hoist — CB-I 1T, CB-I 1.5T, CB-I 2T, CB-I 3T, CB-I 5T, CB-I 10T.
• Key parameters per model summarised above: capacity, lifting height, load chain, chain dimension, pull force, net/gross weight, dimensional values (A, B, C, D, Hmin) and additional weight per metre of lift.
