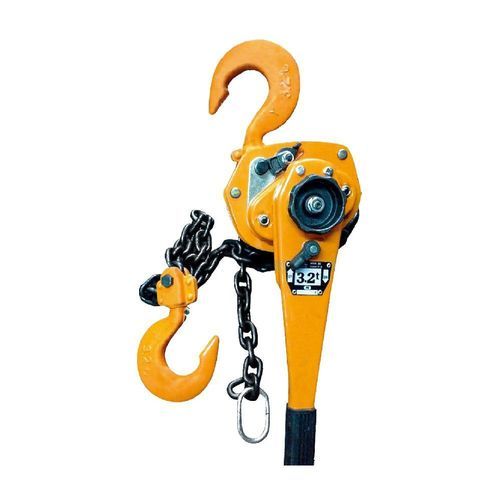

Manual chain hoist HSH-VL

leverlever controlmanually-controlled

Product Overview
The HSH-VL lever block chain hoist is a manual lever hoist engineered for controlled vertical lifting and precise load positioning in industrial environments. It features high-strength alloy chain and hooks, a 360° rotary handle for operation in confined spaces, a Weston double-card automatic brake for secure load holding, and a powder-coated finish for enhanced surface durability. Multiple capacities are available for varied lifting tasks.

Key features

• Compact, low-headroom construction for tight spaces
• High-strength alloy chain and hooks
• 360° rotary handle for easy operation in narrow areas
• Weston double-card automatic brake for reliable load retention
• Powder-coated body for wear resistance
• Rubber anti-slip grip on handle
• Available capacities: 0.5 t, 0.75 t, 1.5 t, 3 t, 6 t, 9 t

Specifications

• Model VL-0.5T — Capacity: 0.5 t; Standard lift: 1.5 m; Running test load: 0.75 t; Falls of load chain: 1; Load chain diameter: 5 mm; Dimensions (A×B×C): 102 × 80 × 95 mm; Net weight: 3.5 kg; Packing: 37×14×17 cm
• Model VL-0.75T — Capacity: 0.75 t; Standard lift: 1.5 m; Running test load: 1.125 t; Falls of load chain: 1; Load chain diameter: 6.3 mm; Dimensions (A×B×C): 155 × 88 × 135 mm; Net weight: 6.6 kg; Packing: 37×14×17 cm
• Model VL-1.5T — Capacity: 1.5 t; Standard lift: 1.5 m; Running test load: 2.25 t; Falls of load chain: 1; Load chain diameter: 7.1 mm; Dimensions (A×B×C): 170 × 110 × 162 mm; Net weight: 11 kg; Packing: 52×14×18 cm
• Model VL-3T — Capacity: 3 t; Standard lift: 1.5 m; Running test load: 4.5 t; Falls of load chain: 1; Load chain diameter: 9 mm; Dimensions (A×B×C): 198 × 120 × 211 mm; Net weight: 17 kg; Packing: 55×16×21 cm
• Model VL-6T — Capacity: 6 t; Standard lift: 1.5 m; Running test load: 9 t; Falls of load chain: 2; Load chain diameter: 9 mm; Dimensions (A×B×C): 198 × 120 × 254 mm; Net weight: 27.5 kg; Packing: 55×16×21 cm
• Model VL-9T — Capacity: 9 t; Standard lift: 1.5 m; Running test load: 13.5 t; Falls of load chain: 3; Load chain diameter: 9 mm; Dimensions (A×B×C): 198 × 120 × 319 mm; Net weight: 47 kg; Packing: 55×16×21 cm

Operation
The lever hoist operates via an internal ratchet and gear mechanism driven by cranking the lever up and down. Gear direction is switched to raise or lower the load. The end hook secures the load for stable support. Units can be supplied with custom options to match application requirements.

Technical details

• Series / Model: HSH-VL
• Body finish: Powder-coated for wear resistance
• Chain & hooks: High-strength alloy
• Brake: Weston double-card automatic brake
• Handle: 360° rotary handle with rubber anti-slip grip
• Standard lift: 1.5 m (all listed models)
• Load chain diameters: 5 mm to 9 mm depending on model
• Net weight range: 3.5 kg to 47 kg depending on model
