Overview

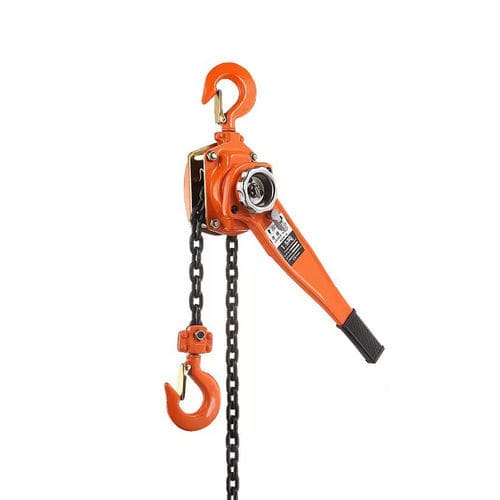

A manual lever chain hoist, also called a come-along, allows one-handed pulling, dragging, positioning or lifting of loads. The design is similar to hand-chain operated hoists. While lever chain hoists can be rated for overhead lifting, not all come-alongs are suitable for overhead use. Check that the product title includes the term Hoist or specifies a lifting capacity before using for overhead lifting. Manual lever chain hoists are intended for commercial and industrial applications in tight spaces and low headroom.

Introduction
Lever blocks are designed to lift loads within their rated capacity and must never be used beyond that limit. They are common equipment in garages, workshops and construction sites. Lever blocks are available in single-fall and multiple-fall chain configurations; select the configuration according to the weight to be lifted.

Parameters
TYPE: TOPONE-D1/2 | TOPONE-D1 | TOPONE-D2 | TOPONE-D3 | TOPONE-D5
Capacity (T): 0.8 | 1.6 | 3.2 | 6.3 | 9
Standard Lift (m): 1.5 (all models)
Running Test Load (T): 0.96 | 1.92 | 3.84 | 7.56 | 10.8
Effort Required To Lift Rated Load (N): 250 | 373 | 390 | 398 | 400
Falls of Load Chain: 1 | 1 | 1 | 2 | 3
Load Chain Diameter (mm): 6x18 | 7x21 | 10x30
Key Dimensions (mm) - A x B x C x φ x D x H x L: see parameter block above
Net Weight (kg): 7.9 | 10.9 | 14.4 | 35 | 50
Extra Weight Per Meter of Extra Lift (kg): 0.8 | 1.1 | 2.2 | 4.4 | 6.6

Standards
Lever hoists operate with a handle connected to an internal ratchet and gear mechanism. Cranking the lever drives the ratchets and a directional control switches the internal gear to raise or lower the load. The load hook secures the load. Units can be customized to customer requirements.

Technical specifications

• Product type / series: TOPONE lever block chain hoists (models: TOPONE-D1/2, TOPONE-D1, TOPONE-D2, TOPONE-D3, TOPONE-D5)
• Capacity range: 0.8 T to 9 T depending on model
• Standard lift: 1.5 m (all models)
• Running test load: 0.96 T, 1.92 T, 3.84 T, 7.56 T, 10.8 T (by model)
• Effort required to lift rated load: 250 N, 373 N, 390 N, 398 N, 400 N (by model)
• Falls of load chain: 1, 1, 1, 2, 3 (by model)
• Load chain diameter options: 6x18 mm, 7x21 mm, 10x30 mm
• Key dimensions (A x B x C x φ x D x H x L) by model: see Parameter block above
• Net weight by model: 7.9 kg, 10.9 kg, 14.4 kg, 35 kg, 50 kg
• Extra weight per meter of extra lift: 0.8 kg/m, 1.1 kg/m, 2.2 kg/m, 4.4 kg/m, 6.6 kg/m
• Designed for commercial and industrial use in tight spaces and low headroom
