Manual chain hoist HS-VL series

handheavy-dutycompact

Product description

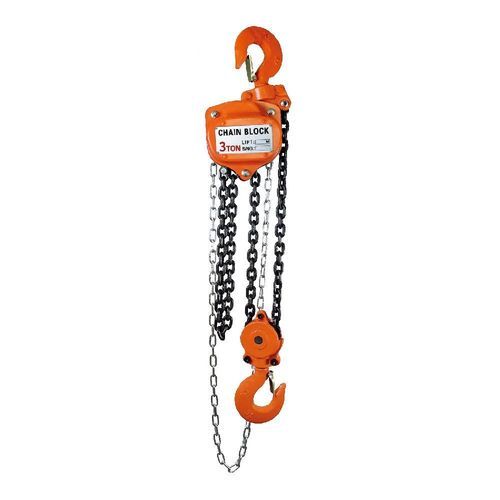

The HS-VL hand chain hoist is a Japanese-engineered series designed to lift loads from 0.5T to 50T with reduced operator effort. It uses an automatic double-pawl braking system and high-grade alloy steel load chains with galvanized hand chain strips for improved wear resistance. Hooks are forged and heat-treated for enhanced strength. Optional load limiters are available to support accurate load control. The range covers compact 0.5T units up to heavy-duty 50T models, with standard lifts typically of 2.5 m or 3 m depending on the model.

Introduction

• Japanese engineering
• Optional load limiters available
• Low operating force for lifting high loads
• High-grade alloy steel load chain and galvanized hand chain strip
• Forged, heat-treated hooks for extended service life
• Working load range: 0.5 Ton to 50 Ton (models as listed)

Parameter
MODEL: HS-V0.5T | HA-VL1T | HS-V1.5T | HA-VL2T | HS-VL3T | HA-VL5T | HA-VL10T | HA-VL20T | HA-VL30T | HA-VL50T
CAPACITY (t): 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50
Standard lift (m): 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3
Running test load chain (t): 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75
No of falls of load chain: 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 20
Load chain diameter (mm): 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9
Dimension A (mm): 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406
Dimension B (mm): 13 | 154 | 164.5 | 187 | 164.5 | 211 | 398 | 350 | 680 | 962
Dimension C (mm): 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578
Net weight (kg): 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092
Packing (L*W*H) (cm): 22*16*15 | 25*19*16 | 33*24*16 | 33*24*19 | 34.5*24*16 | 40*30*19 | 48*42*18.5 | 78*68*20 | 85*67*30 | 110*100*130

Features / Technical specifications

• Series: HS-VL Hand Chain Hoist (models listed above)
• Capacity range: 0.5 Ton to 50 Ton
• Standard lift: typically 2.5 m or 3 m depending on model
• Running test load chain values range from 0.75 t to 75 t
• Number of falls of load chain: 1 to 20 (model dependent)
• Load chain diameter: 5 mm to 9 mm depending on model
• Automatic double-pawl braking system for secure, reliable holding
• High-grade alloy steel load chain and galvanized hand chain strip for wear resistance
• Forged and heat-treated hooks for high strength and long service life
• Optional load limiters for enhanced safety and precise load control
• Net weight and packing dimensions vary by model (see Parameter section above)
