Overview

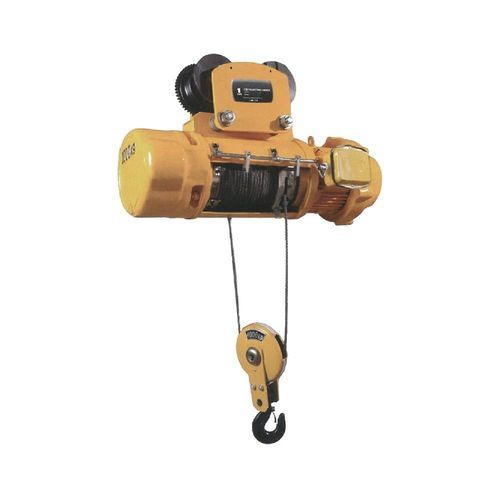

The MD1 Electric Hoist is a compact electric wire rope hoist designed for single-beam cranes, warehouse handling and bridge applications. It provides dual-speed hoisting for precise load placement, a three-stage helical gear reducer for smooth power transmission, and a conical-rotor hoisting motor with high starting torque. Built components and safety devices meet industrial requirements for reliability and maintainability.

Introduction

• Dual-speed operation (normal / low) enables controlled loading and unloading at reduced speed.
• Application: single-beam bridge cranes, warehouses and industrial bridges.
• Transmission: three-stage fixed-shaft helical gear reducer; gears and shafts made of heat-treated alloy steel.
• Housing: high-quality cast-iron box and cover, tightly assembled and well sealed for long service life.
• Electrical safety: main-circuit emergency cut-off and up/down travel limiters (fire cut-off limiter).
• Wire rope: GB1102-74 (6 x 37 + 1) hoisting steel wire rope for durability.
• Motor: conical rotor asynchronous hoisting motor providing large lifting torque without an additional brake; duty cycle 25%; insulation class B or F; protection IP44/IP54.
• Control: hand-operated button switch; available in cable operation or cordless wireless remote control.

Parameter
Capacity (Ton): 0.5, 1, 2, 3, 5, 10, 16
Lifting height (m): 3-9, 6-12, 6-18, 6-18, 6-18, 6-18, 6-18
Hoisting speed (m/min): 8/0.8 (all capacities)
Running speed (m/min): 20/30
Diameter of wire rope (mm): 4.8, 7.4, 11, 13, 15.5, 15.5, 15.5
I Beam (GB706-88): 16-28b, 16-28b, 20a-32c, 20a-32c, 25a-45c, 32b-63c, 32b-63c
Lift motor capacity (kW): 0.8, 1.5, 3, 4.5, 7.5, 13, 13
Running motor capacity (kW): 0.2, 0.2, 0.4, 0.4, 0.8, 0.8*2, 0.8*2
Voltage: 220V / 380V / 440V, 50Hz / 60Hz, 3PH
Double girder: customizable

Technical specifications

• Model: MD1 Electric Hoist
• Application: single-beam cranes, warehouses, bridges
• Transmission: three-stage fixed-shaft helical gear reducer (heat-treated alloy steel gears and shafts)
• Housing: cast-iron box and cover, tightly assembled and sealed
• Wire rope: GB1102-74 (6 x 37 + 1)
• Motor: conical rotor asynchronous hoisting motor, high torque, no additional brake, 25% duty cycle
• Insulation: class B or F
• Protection: IP44 / IP54
• Control: hand-operated button switch; rope operation or cordless wireless remote available
• Safety: main-circuit emergency cut-off; up/down travel limiters
• Speeds: dual-speed hoisting (example 8 / 0.8 m/min); running 20 / 30 m/min
• Voltage options: 220V / 380V / 440V, 50Hz / 60Hz, 3-phase
