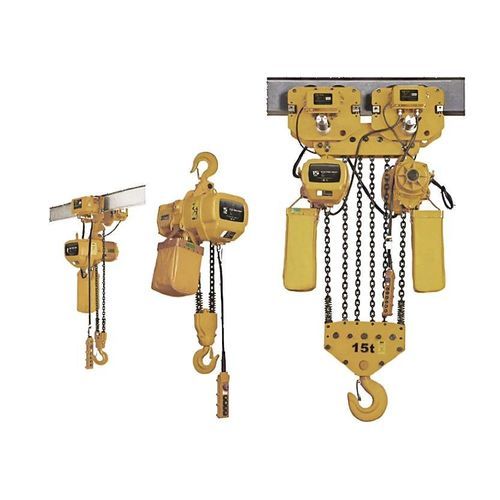

Electric chain hoist HHBB series

trolleylow-headroomdouble

Overview
The HHBB series electric chain hoist features a compact low-headroom design that reduces the distance between the hoist body and the beam track. This layout improves vertical lifting efficiency and is suitable for low-ceiling facilities, temporary plants and sites where available lifting space must be maximized.

Key features

• Low-headroom construction for reduced hook approach.
• Multi-fall configurations (single- or double-fall) to cover capacities from 0.5 t to 5 t.
• Standardised 3 m lift with optional lifts available on request.
• Multiple chain diameters and motor power options to match application requirements.
• Designed for straightforward installation on beam tracks and easy access for maintenance.

Technical parameters

• Model range: HHBB-0.5A | HHBB-1.0A | HHBB-2.0A | HHBB-1.0B | HHBB-2.0B | HHBB-3.0B | HHBB-5.0B
• Capacity (t): 0.5 | 1.0 | 2.0 | 1.0 | 2.0 | 3.0 | 5.0
• Standard lift (m): 3 for all standard models
• Test load (t): 6.25 | 12.5 | 25 | 12.5 | 25 | 37.5 | 62.5
• Motor power (kW): 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3.0 | 3.0
• No. of load chain fall lines: 1 | 1 | 1 | 1 | 2 | 2 | 2
• Diameter of load chain (mm): 6.3 | 7.1 | 10 | 6.3 | 7.1 | 10 | 11.2
• Lifting speed (m/min): 7.8 | 6.8 | 6.8 | 3.9 | 3.4 | 5.8 | 2.8
• Net weight (kg): 42 | 59 | 110 | 47 | 69 | 123 | 133
• Dead weight per meter (kg/m): 0.5 | 1.1 | 2.2 | 1.0 | 2.2 | 4.4 | 5.8

Models and configurations

• A- and B-type models provide mounting and speed/configuration variants; check model code for fall-line and motor differences.
• Single-fall models deliver higher lift speed; double-fall models increase rated capacity with reduced speed.
• Standard lift 3 m; custom lifts and hoist trolleys are available per project requirements.

Applications

• Workshops, light- to medium-duty manufacturing lines and modular/temporary plants.
• Construction sites and maintenance bays with restricted headroom.
• Any installation requiring flexible capacity ranges (0.5–5 t) with compact installation envelope.

Standards & certifications
Not specified on the source page — verify applicable regional standards and request manufacturer certification details prior to purchase.

Installation & maintenance

• Install on compatible beam tracks with attention to headroom and trolley compatibility.
• Follow manufacturer procedures for chain inspection, lubrication and motor maintenance at defined intervals.
• Perform load tests and safety checks after installation and after significant modifications to the lifting system.
