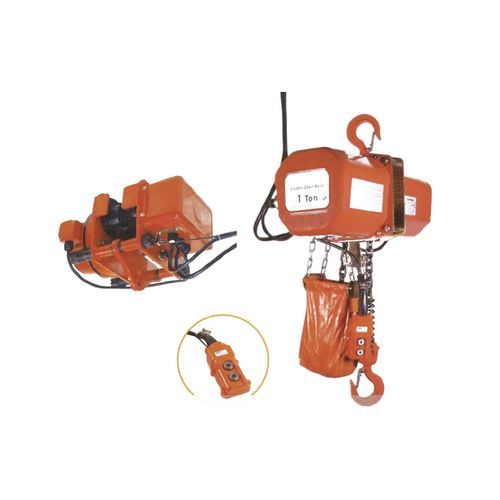

Electric chain hoist VKL series

motor-drivenfor materials handling1

Product Overview
The VKL series electric chain hoist provides controlled industrial lifting for capacities from 0.5 t to 5.0 t. Models include VKL-0.5A, VKL-1.0A, VKL-2.0A, VKL-3.0A, VKL-3.0B and VKL-5.0B. Key safety elements include a high-strength safety hook, a limit switch and a load-limiting device. The unit uses a portable, high-efficiency motor with overheating protection and a 24V control button for operator safety. Dual Japanese braking technology increases reliability for critical lifts. Available for single-phase or three-phase supply; CE certified for industrial applications.

Features

• High-strength safety hook to prevent breakage under load
• Portable high-efficiency motor with overheating protection
• 24V control button for safe operation
• Equipped with limit switch
• Integrated load-limiting device to avoid overload
• Compatible with single-phase and three-phase power
• CE certified
• Japanese double-braking technology for enhanced safety and reliability

Parameters
Model | VKL-0.5A | VKL-1.0A | VKL-2.0A | VKL-3.0A | VKL-3.0B | VKL-5.0B
Capacity (t) | 0.5 | 1.0 | 2.0 | 3.0 | 3.0 | 5.0
Standard Lift (m) | 3 | 3 | 3 | 3 | 3 | 3
Test load (t) | 6.25 | 12.5 | 25 | 37.5 | 37.5 | 65.5
Motor power (kW) | 0.8 | 1.6 | 1.6 | 1.6 | 3.0 | 3.0
No. of load chain fall lines | 1 | 1 | 2 | 3 | 2 | 3
Diameter of load chain (mm) | 7.1 | 7.1 | 7.1 | 7.1 | 9 | 9
Lifting speed (m/min) | 7 | 7 | 3.5 | 2.3 | 4 | 2.6
Net weight (kg) | 50 | 55 | 60 | 65 | 78 | 85
Dead weight per meter (kg) | 1.1 | 1.1 | 2.2 | 3.3 | 3.5 | 5.3

Technical specifications

• Series: VKL series (models: VKL-0.5A, VKL-1.0A, VKL-2.0A, VKL-3.0A, VKL-3.0B, VKL-5.0B)
• Capacity range: 0.5 t to 5.0 t
• Standard lift: 3 m
• Test load: from 6.25 t up to 65.5 t depending on model
• Motor power: 0.8 kW to 3.0 kW depending on model
• Load chain fall lines: 1 to 3 falls depending on model
• Load chain diameter: 7.1 mm or 9 mm depending on model
• Lifting speeds by model: 7 / 3.5 / 2.3 / 4 / 2.6 m/min
• Net weight by model: 50 kg to 85 kg
• Dead weight per meter: 1.1 kg to 5.3 kg
