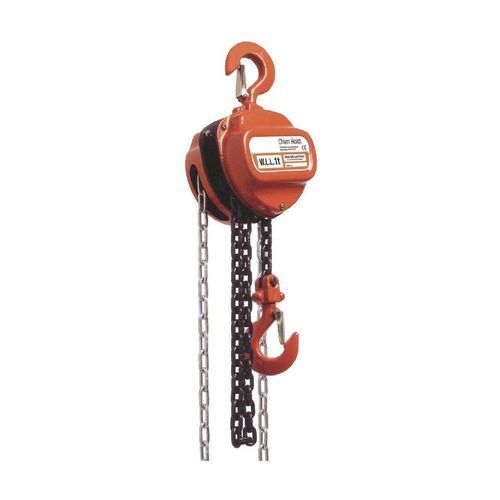

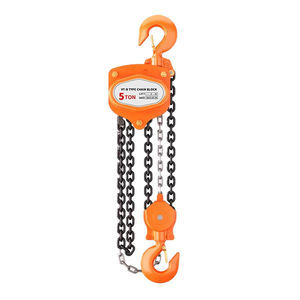

Manual chain hoist HSZ-C series

handheavy-duty1

Product Overview
The HSZ-C hand chain hoist is a manual lifting device designed for industrial use. It enables operators to lift heavy loads with limited effort. The hoist is fitted with a high-grade alloy steel load chain and a standard galvanized chain container. Hooks are drop-forged and heat-treated to provide high load strength and extended service life. Available capacities range from 0.5 t to 10 t (standard), with heavy-duty variants up to 30 t and 50 t. Additional load limiters are available as options.

Introduction

• Optional additional load limiters.
• Allows lifting large loads with small applied force.
• High-grade alloy steel load chain and standard galvanized chain container.
• Hooks are drop-forged and heat-treated for high strength and long service life.
• Capacity range: 0.5 t to 10 t (table); heavy-duty hoists available at 30 t and 50 t.

Parameter
MODEL, HSZ-C1/2, HSZ-CL1, HSZ-C1 1/2, HSZ-C2, HSZ-C3, HSZ-C5, HSZ-C10
CAPACITY(t), 0.5, 1, 1.5, 2, 3, 5, 10
Standard lift(m), 2.5, 2.5, 2.5, 3, 3, 3, 3.5
Test load(t), 0.75, 1.5, 2.25, 3, 4.5, 7.5, 15
Min. distance between hooks(mm), 285, 315, 340, 380, 475, 600, 700
Chainpull to lift full load(n), 25, 33, 34, 34, 35, 39, 41
No. of load chain (mm), 1, 1, 1, 2, 2, 2, 4
Diameter of load chain(mm), 6, 6, 8, 8, 8, 10, 10
Net weight(kg), 8, 10, 11, 14, 22, 36, 68
Gross weight(kg), 9.4, 11.5, 12, 17, 26, 43, 82
Packing(L*W*H)(cm), 28*21*17, 30*24*18, 34*29*20, 35*25*19, 38*30*20, 45*35*24, 70*46*75

Standards
No specific standards provided.

Features / technical specifications

• Model / Series: HSZ-C
• Capacity range: 0.5 t to 10 t (table); heavy-duty hoists available at 30 t and 50 t
• Standard lift: 2.5 m–3.5 m depending on model
• Test load: 0.75 t–15 t depending on model
• Minimum distance between hooks: 285 mm–700 mm depending on model
• Chain pull to lift full load: 25–41 N depending on model
• Number of load chains: 1–4 depending on model
• Diameter of load chain: 6 mm–10 mm depending on model
• Net weight: 8 kg–68 kg depending on model
• Gross weight: 9.4 kg–82 kg depending on model
• Packing dimensions vary by model (examples in table)
• Materials / treatments: high-grade alloy steel load chain, standard galvanized chain container; hooks drop-forged and heat-treated for high strength and long service life
• Optional accessories: additional load limiters
