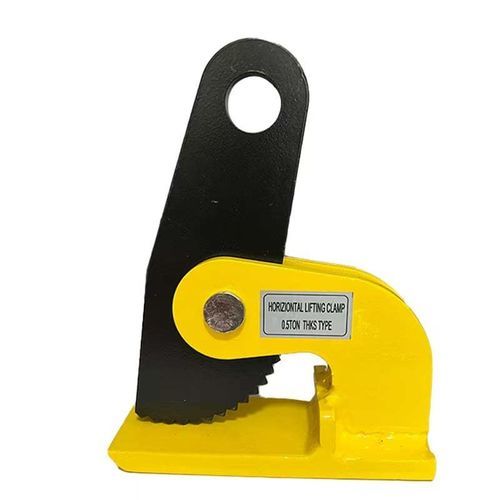

Sheet metal lifting clamp THK series

sheetfor steel plateshorizontal

Introduction
The THK/THKS Horizontal Plate Clamp, designed by TOPONE, is engineered to lift thin or flexible steel sheets that may sag during handling. Its reversed jaw pivot and compact forged-steel body ensure a secure grip and stable horizontal lifting performance. THK models feature an enlarged jaw opening for greater versatility. These clamps must be used in pairs or multiples to maintain balance and safety in industrial lifting operations.

Parameter
Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg)
THKS0.5 — 0.5 t — Jaw Opening: 0-35 mm — Weight: 2.4 kg
THKS1 — 1.0 t — Jaw Opening: 0-60 mm — Weight: 6 kg
THKS1.5 — 1.5 t — Jaw Opening: 0-60 mm — Weight: 6.5 kg
THKS2 — 2.0 t — Jaw Opening: 0-60 mm — Weight: 7.5 kg
THKS3 — 3.0 t — Jaw Opening: 0-60 mm — Weight: 10 kg
THKS4 — 4.0 t — Jaw Opening: 0-60 mm — Weight: 11.5 kg
THKS5 — 5.0 t — Jaw Opening: 0-60 mm — Weight: 15.5 kg
THKS10 — 10.0 t — Jaw Opening: 0-60 mm — Weight: 23 kg
THK1 — 1.0 t — Jaw Opening: 0-100 mm — Weight: 7 kg
THK1.5 — 1.5 t — Jaw Opening: 0-100 mm — Weight: 7.5 kg
THK2 — 2.0 t — Jaw Opening: 0-100 mm — Weight: 9.5 kg
THK3 — 3.0 t — Jaw Opening: 0-100 mm — Weight: 12 kg
THK4 — 4.0 t — Jaw Opening: 0-100 mm — Weight: 14.5 kg
THK5 — 5.0 t — Jaw Opening: 0-100 mm — Weight: 20 kg
THK10 — 10.0 t — Jaw Opening: 0-100 mm — Weight: 28 kg

Standards
Applicable conformity certificates and standards available on request; contact supplier for documentation.

Characteristics / Technical specifications

• Working Load Limit (WLL): 0.5 – 10 tonnes depending on model.
• Primary application: horizontal lifting of steel sheets and thin plates.
• Design features: reversed jaw pivot for secure grip on thin or flexible plates; THK models provide enlarged jaw opening.
• Jaw opening ranges: THKS series typically 0–60 mm (THKS0.5: 0–35 mm); THK series 0–100 mm.
• Construction: forged steel body suitable for industrial use; compact and lightweight design relative to capacity.
• Operation: must always be used in pairs or multiples to ensure safety and balance.
• Available models: THKS0.5, THKS1, THKS1.5, THKS2, THKS3, THKS4, THKS5, THKS10, THK1, THK1.5, THK2, THK3, THK4, THK5, THK10.
