Mechanical chain hoist HSZ-KⅡ series

manualhandheavy-duty

Product overview

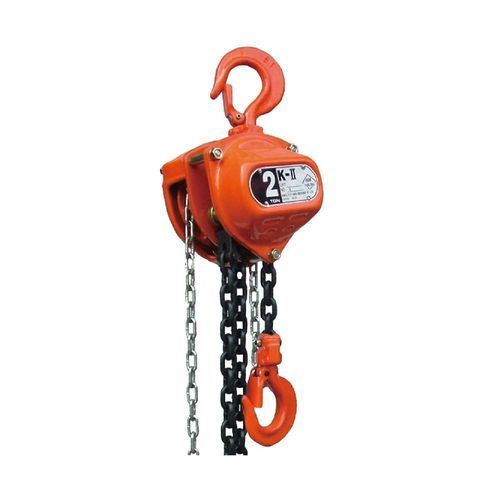

HSZ-KⅡ hand chain hoist is a manual lifting device for industrial material handling. It allows operators to raise heavy loads with reduced effort via a compact mechanical transmission and high-strength components. The load chain is manufactured from high-grade alloy steel and standard components are galvanised. Hooks are drop-forged and professionally heat-treated for high load resistance and long service life. Optional load limiters are available. The product range covers capacities from 0.5 t to 20 t, with 30 t and 50 t heavy-duty units available; multiple models offer different rated lifts and specifications to meet varied requirements.

Key features

• Optional load limiters available
• Enables lifting large weights with low manual effort
• High-grade alloy steel load chain and standard galvanised fittings
• Drop-forged, heat-treated hook for high load strength and durability
• Capacity range: 0.5 t to 20 t (30 t and 50 t heavy units available)

Technical parameters
MODEL | HZS-KⅡ1/2 | HZS-KⅡ1 | HZS-KⅡ1 1/2 | HZS-KⅡ2 | HZS-KⅡ3 | HZS-KⅡ5 | HZS-KⅡ10
CAPACITY (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10
Standard lift (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5
Test load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5
Min. distance between hooks (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700
Chainpull to lift full load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41
No. of load chain fall lines | 1 | 1 | 1 | 1 | 2 | 2 | 4
Diameter of load chain (mm) | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9
Net weight (kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77
Gross weight (kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85
Packing (L*W*H) (cm) | 26*16*20 | 26*16*20 | 27*18*24 | 28*18*24 | 28*19*26 | 39*22*30 | 48*46*26

Specifications

• Brand: TOPONE CHAIN
• Model series: HSZ-KⅡ
• Capacity range: 0.5 t to 20 t (30 t and 50 t heavy units available)
• Standard lifts: 2.5 m, 3 m, 3.5 m depending on model
• Test loads vary by model (example: 0.75 t for 0.5 t capacity up to 12.5 t for 10 t capacity)
• Minimum distance between hooks: 285 mm to 700 mm depending on model
• Chain pull to lift full load: 25 N to 41 N depending on model
• Number of load chain falls: 1, 2 or 4 depending on model
• Load chain diameter: 6.3 mm to 9 mm depending on model
• Net weight range: 8.4 kg to 77 kg depending on model
• Gross weight range: 9.4 kg to 85 kg depending on model
• Packing dimensions vary by model (see table)
• Key components: high-grade alloy steel load chain, galvanised fittings, drop-forged and heat-treated hook
