Manual chain hoist HSZ-T series

handcompactfor materials handling

Overview

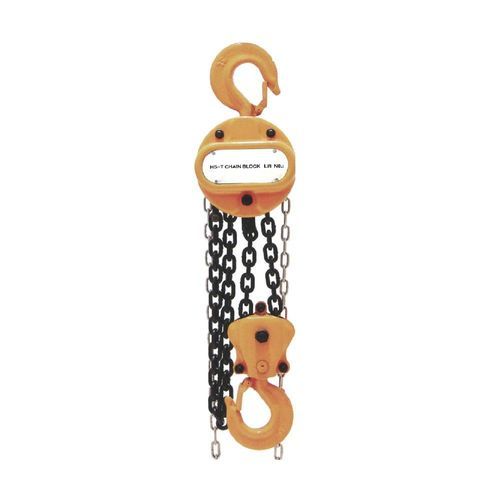

The HSZ-T hand chain hoist is a portable manual lifting device designed for installation, lifting and loading operations in industrial, construction, agricultural and logistics environments. It operates without external power and is suitable for use in open areas and locations without electricity.

Introduction

• Safe and reliable design with low maintenance requirements.
• High mechanical advantage providing low hand tension for operators.
• Lightweight construction for easy handling and portability.
• Compact dimensions for use in confined spaces.
• Durable components for extended service life.

Parameter
MODEL: HSZ-T1/2 | HSZ-T1 | HSZ-T1 1/2 | HSZ-T2 | HSZ-T3 | HSZ-T5 | HSZ-T10
CAPACITY (t): 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10
Standard lift (m): 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5
Test load (t): 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5
Min. distance between hooks (mm): 255 | 306 | 368 | 444 | 486 | 616 | 700
Chainpull to lift full load (N): 221 | 304 | 343 | 314 | 646 | 383 | 392
No. of load chain fall lines: 1 | 1 | 1 | 2 | 2 | 2 | 4
Diameter of load chain (mm): 6 | 6 | 8 | 6 | 5 | 10 | 10
Net weight (kg): 8 | 10 | 16 | 14 | 24 | 36 | 68
Gross weight (kg): 10 | 13 | 20 | 17 | 28 | 45 | 83
Packing (L*W*H) (cm): 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 70*45*75

Features / technical specifications

• Series: HSZ-T series
• Capacity range: 0.5 t to 10 t (models: HSZ-T1/2, HSZ-T1, HSZ-T1 1/2, HSZ-T2, HSZ-T3, HSZ-T5, HSZ-T10)
• Standard lift: 2.5 m (most models); up to 3.5 m for HSZ-T10
• Test load: from 0.75 t to 12.5 t depending on model
• Minimum distance between hooks varies by model: 255 mm to 700 mm
• Chain pull to lift full load: 221 N to 646 N (model dependent)
• Number of load chain fall lines: 1, 2 or 4 depending on model
• Load chain diameter: 5 mm to 10 mm depending on model
• Net weight range: 8 kg to 68 kg; gross weight range: 10 kg to 83 kg
• Packing dimensions vary by model (see Parameter section)
