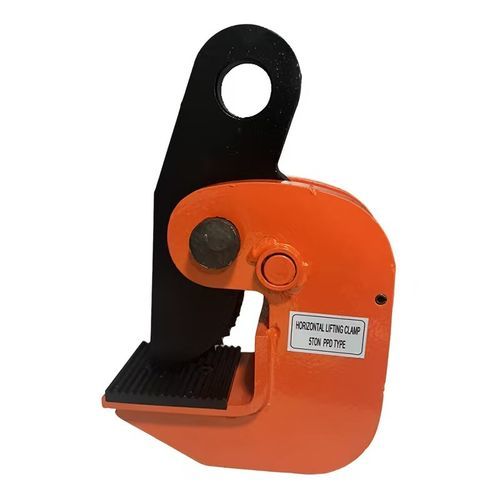

Sheet metal lifting clamp PPD series

sheetfor steel plateshorizontal

Overview
The PPD Horizontal Plate Clamp from TOPONE CHAIN is engineered for safe horizontal lifting and handling of steel plates in industrial environments. Precision-forged carbon steel construction provides consistent load-bearing performance and long service life.

Introduction

• Working Load Limit (WLL): available models from 0.8 t to 30 t (see parameters).
• Designed specifically for horizontal lifting and transport of steel plates.
• Precision-forged carbon steel body for predictable strength and wear resistance.
• Safety release button enables controlled detachment after lifting operations.
• Replaceable jaw plates reduce maintenance time and extend operational life.
• Clamping geometry and anti-slip features prevent plate movement or collision under load.

Parameters (model / WLL (tonnes) / Jaw opening (mm) / Weight (kg))
Model | WLL (tonnes) | Jaw opening (mm) | Weight (kg)
PPD0.8 | 0.8 | 0-25 | 2.5
PPD1 | 1.0 | 0-30 | 3.5
PPD1.6 | 1.6 | 0-30 | 4
PPD2 | 2.0 | 0-40 | 5
PPD3.2 | 3.2 | 0-45 | 6
PPD5 | 5.0 | 0-50 | 7.5
PPD8 | 8.0 | 0-80 | 10.5
PPD10 | 10.0 | 0-120 | 33
PPD16 | 16.0 | 50-150 | 50
PPD30 | 30.0 | 100-270 | 108

Standards
Consult TOPONE CHAIN for applicable standards, certifications and recommended inspection procedures for each model.

Technical specifications

• Brand: TOPONE CHAIN.
• Series: PPD series (PPD0.8–PPD30).
• Material: Precision-forged carbon steel.
• Function: Horizontal lifting and transport of steel plates.
• Safety: Safety release button for controlled disengagement.
• Maintenance: Replaceable jaw plates for extended service life.
• Anti-slip: Clamping design to prevent slipping or collision under load.
• Available WLL models: 0.8 t to 30.0 t (see parameters).
