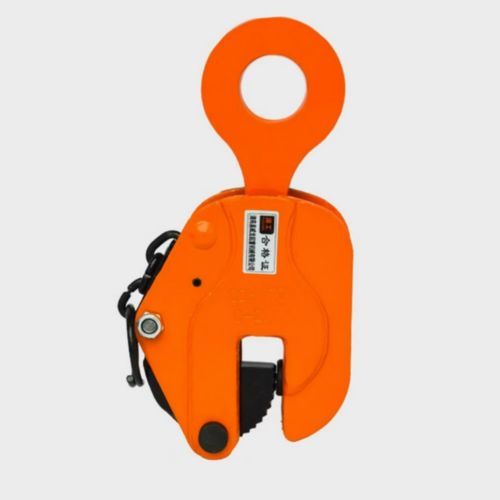

Beam lifting clamp SCDH series

for steel platesverticalmechanical

Product Overview
The SCDH Vertical Plate Clamp by TOPONE is a standard clamp for vertical lifting of steel plates and steel structures. Constructed from die-forged alloy steel with a spring-loaded lock, it provides secure vertical lifting operations for plates and beams.

Introduction
Working Load Limit (WLL): 1–5 t.
Designed for vertical lifting of steel plates and beams.
Spring-loaded tightening mechanism prevents slippage during lifting.
Die-forged alloy steel body for strength and durability.
Cam treated by high-frequency quenching to extend service life.

Parameters
Model | Combined Rated Load of 4 Units (t) | Opening (mm) | Net Weight (kg)
SCDH1 | 1 | 0–20 | 4.2
SCDH2 | 2 | 0–30 | 6.2
SCDH3 | 3 | 0–35 | 9.3
SCDH5 | 5 | 0–50 | 12.3

Specifications

• Working Load Limit (WLL): 1–5 t.
• Application: vertical lifting of steel plates and beams.
• Spring-loaded tightening device to prevent slip.
• Die-forged alloy steel body for durability.
• Cam with high-frequency quenching for extended life.
• Available models: SCDH1 (1 t, opening 0–20 mm, net weight 4.2 kg); SCDH2 (2 t, 0–30 mm, 6.2 kg); SCDH3 (3 t, 0–35 mm, 9.3 kg); SCDH5 (5 t, 0–50 mm, 12.3 kg).
