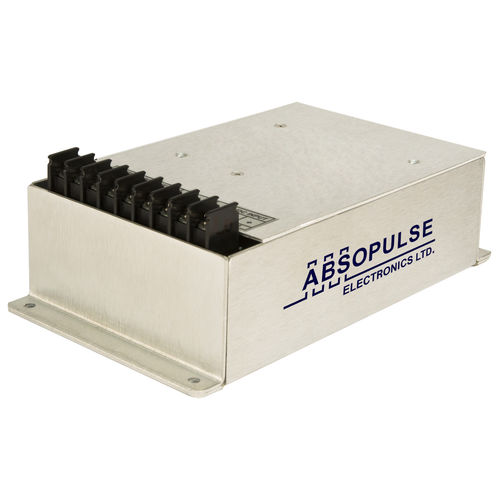

This fully encapsulated, railway quality DC-DC converter utilizes field proven topology to generate the required output power. The unit meets the requirements of EN50155 for electronic equipment used on railway rolling stock. The input voltage range ensures that the unit can withstand RIA12 surges (3.5Vn for 20msec). The converter is entirely potted with a thermally conductive MIL-grade silicon rubber compound to ensure immunity to high levels of shock, vibration and humidity. Cooling is by conduction via a base plate to a heat-sinking surface. Low component count, large design headroom, and the use of components with established reliability result in a high MTBF. The unit is also suitable for transportation, mining, oilrigs, military and other harsh environments. It is manufactured at our plant under strict quality control. Customized versions are also available.
Key Specifications
•Railway quality dc-dc converter – EN50155 compliant;
•RIA12 input voltage withstand capacity (3.5Vn for 20msec);
•Full encapsulated with thermally conductive silicon potting compound;
•Input: 24Vdc, 36Vdc, 48Vdc, 72Vdc, 96Vdc, 110Vdc (EN50155 ranges) ;
•Output: 12V, 24Vdc, 48Vdc, 110Vdc or custom;
•Line/load regulation: ±1% zero-load to full-load;
•EMI: EN50121-3-2;
•Cooling: conduction and natural convection;
•-40°C to +70°C operating temperature range for full specification.
