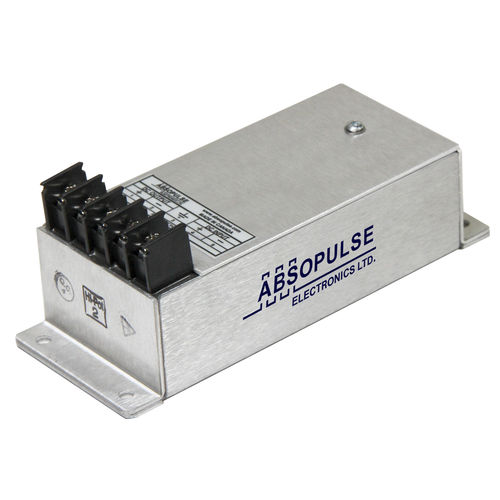

DC/DC converter for railway applications RWY 15-P30 series
encapsulatedregulatedsingle-output

DC/DC converter for railway applications
DC/DC converter for railway applications
DC/DC converter for railway applications
Add to favorites
Compare this product


Characteristics

Configuration
encapsulated
Electrical characteristics
regulated
Applications
for railway applications
Other characteristics
single-output, switching, rugged, high MTBF, EN50155
Power

15 W

Input voltage

Max.: 110 V

Min.: 24 V

Output voltage

Max.: 110 V

Min.: 5 V

Description

This fully encapsulated, railway quality power converter utilizes field-proven technology to generate the required output power. It is a mature design with a track record in numerous applications. The unit is entirely potted with a thermally conductive MIL-grade silicon rubber compound which provides protection from moisture and other contaminants, as well as immunity to shock and vibration. Cooling is by conduction via a base plate to a heatsinking surface. Full electronic protection, low component count, large design headroom and the exclusive use of components with established reliability contribute to a high MTBF. The unit meets the requirements of EN50155 for electronic equipment used on railway rolling stock. It is manufactured at our plant under strict quality control.
