enclosed DC/DC converter / regulated / industrial / for telecom applications
DCW 150-F1 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

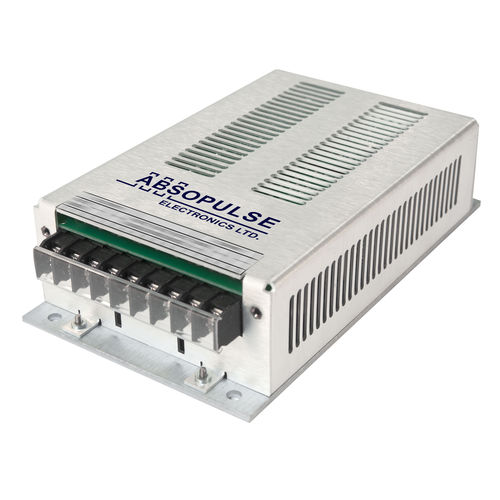

enclosed DC/DC converter enclosed DC/DC converter - DCW 150-F1 series
{{requestButtons}}

Characteristics

  • Configuration:

    enclosed

  • Electrical characteristics:

    regulated

  • Applications:

    industrial, for telecom applications, for harsh environments

  • Other characteristics:

    single-output, wide input range, rugged, high MTBF, convection-cooled

  • Power:

    150 W

  • Input voltage:

    Min.: 20 V

    Max.: 160 V

  • Output voltage:

    12 V, 24 V, 48 V, 125 V

Description

•Rugged industrial quality
•Wide DC-input voltage range
•Field-proven design
•Conduction/convection cooled
•Full electronic protection
•Wide input ranges

This rugged, industrial quality power converter utilizes field-proven technology to generate the required output power. It is a mature design with a track record in numerous applications. Cooling is by conduction via baseplate. Additional cooling is achieved by natural convection through the cooling slots. All heat generating components are installed on aluminum heatsink blocks which are thermally connected to the base plate. This also provides exceptional mechanical ruggedness. Conformal coating provides protection against humidity and airborne contaminants. An optional built-in redundancy diode allows for parallel and N+1 operation. A Form C output fail alarm is available on request. Full electronic protection, low component count, large design headroom and the exclusive use of components with established reliability contribute to a high MTBF. The unit is manufactured at our plant under strict quality control.
