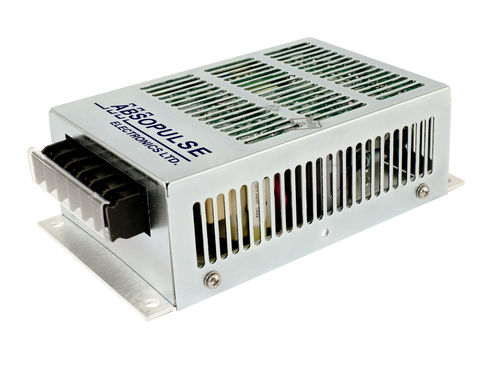

enclosed DC/DC converter / industrial / single-output / wide input range
DCW 100-F0 series



  • Configuration:


  • Applications:


  • Other characteristics:

    single-output, wide input range, rugged, convection-cooled, high MTBF

  • Power:

    100 W

  • Input voltage:

    Max.: 160 V

    Min.: 20 V

  • Output voltage:

    12 V, 24 V, 48 V, 125 V


The DCW 100 Series rugged, industrial quality DC/DC converter uses a field proven technology to generate 100W output power. It is a mature design with a track record in numerous applications. Cooling is by conduction via base-plate to a heat-sinking surface and by natural convection. Low component count, large design headroom and the use of components with established reliability results in a high demonstrated MTBF. Optional heavy ruggedizing and conformal coating provide additional immunity to shock, vibration and moisture. This chassis-mount design is also optimized for cost efficiency. Open-frame versions with a 3” x 5” printed circuit board and 1.5” heat-sink block height are also available on request. The DCW 100 is manufactured at our plant under strict quality control.
