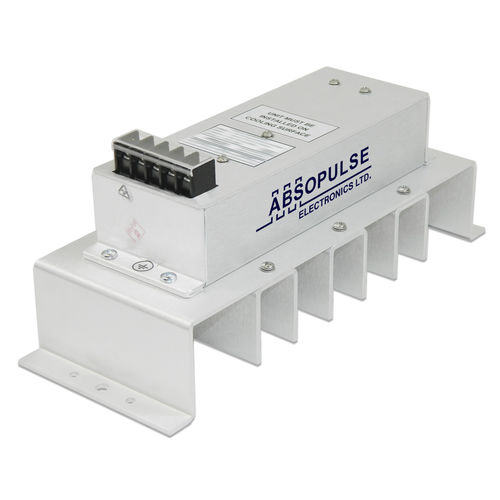

Chassis-mounted DC/DC converter RWY 200-HSA-P2
encapsulatedfor railway applicationssingle-output

chassis-mounted DC/DC converter
chassis-mounted DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
chassis-mounted, encapsulated
Applications
for railway applications
Other characteristics
single-output, wide input range, EN50155, convection-cooled, high MTBF
Power

200 W

Input voltage

Max.: 110 V

Min.: 24 V

Output voltage

24 V, 36 V, 48 V, 110 V

Description

The RWY 200-HSA-P2 series is a recent addition to our line of fully encapsulated railway quality DC-DC converters with pure convection cooling. The 200W converters are cooled by a heatsink assembly attached to their under-surface. This ensures operation over -40 to +55oC temperature range for full specification without derating; wider temperature ranges are available on request. Key Specifications •200W Railway quality dc-dc converters – EN50155 compliant; •EMI: EN50121-3-2; •Input: 24Vdc, 36Vdc, 48Vdc, 72Vdc, 96Vdc, 110Vdc (wide EN50155 ranges); •Output: 24Vdc, 36Vdc, 48Vdc, 110Vdc or custom; •Cooling: natural convection; •-40°C to +55°C operating temperature range for full specification; •Chassis-mount and DIN-rail mount options available; •P200 encapsulated unit: 69 x 58 x 211 mm (2.7″ x 2.3″ x 8.3″) Installed on an HSA P2 4×10 heatsink assembly Overall dimensions: 3.9” x 4.2” x 10.65”
