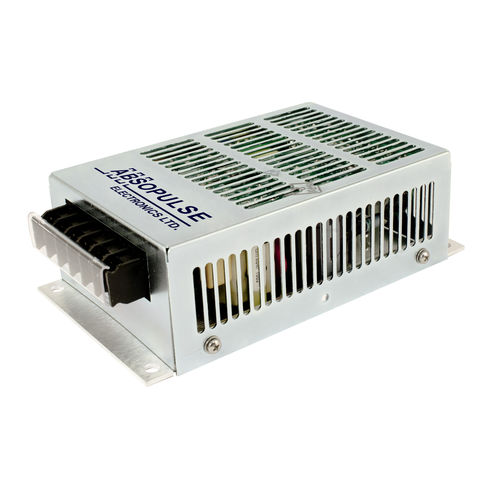

enclosed DC/DC converter / industrial / wide input range / dual-output
DCW 102 series

{{requestButtons}}

Characteristics

  • Configuration:

    enclosed

  • Applications:

    industrial

  • Other characteristics:

    wide input range, dual-output, regulated, convection-cooled, high MTBF

  • Power:

    Min.: 50 W

    Max.: 100 W

  • Input voltage:

    Min.: 20 V

    Max.: 160 V

  • Output voltage:

    12 V

Description

The DCW 102 Series dual-output, industrial quality DC/DC converter uses field-proven technology to generate up to 100W continuous
output power, depending on the input/output configuration. One output is regulated, with the second output tracking. It is a mature
design with a track record in numerous applications. Cooling is via base plate to a heat-sinking surface and by natural
convection. Additional ruggedizing and conformal coating are available for applications that require higher immunity to shock,
vibration and humidity. Low component count, large design headroom, and the use of components with established reliability
result in a high MTBF. The unit is manufactured at our plant under strict quality control.
