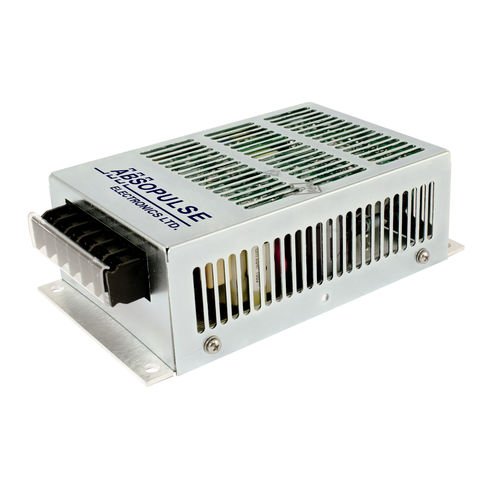

industrial DC/DC converter / chassis-mounted / single-output / wide input range
DCW 50-F0 series



  • Configuration:


  • Applications:


  • Other characteristics:

    single-output, wide input range, rugged, convection-cooled, high MTBF

  • Power:

    30 W

  • Input voltage:

    Min.: 20 V

    Max.: 160 V

  • Output voltage:

    12 V, 24 V, 48 V, 125 V


This rugged, industrial quality DC-DC converter uses a field proven technology to generate the required output power. It is a mature
design with a track record in numerous applications. Cooling is by conduction via baseplate. Additional cooling is achieved by natural
convection through the cooling slots. All heat generating components are installed on aluminum heatsink blocks which are thermally
connected to the base plate. This also provides exceptional mechanical ruggedness. Conformal coating provides protection against
humidity and airborne contaminants. This chassis-mount design is also optimized for cost efficiency. Open-frame versions with a 3” x 5”
printed circuit board and 1.5” heat-sink block height are also available on request. Full electronic protection, low component count,
large design headroom and the exclusive use of components with established reliability contribute to a high MTBF. The unit is
manufactured at our plant under strict quality control.
