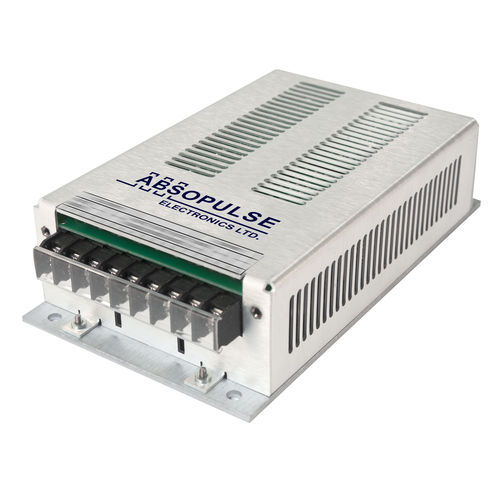

enclosed DC/DC converter / chassis-mounted / regulated / industrial
DCW 153-F1 series

{{requestButtons}}

Characteristics

  • Configuration:

    enclosed, chassis-mounted

  • Electrical characteristics:

    regulated

  • Applications:

    industrial

  • Other characteristics:

    wide input range, rugged, high MTBF, regulated, triple-output

  • Power:

    Min.: 110 W

    Max.: 130 W

  • Input voltage:

    Min.: 20 V

    Max.: 160 V

  • Output voltage:

    5.1 V, 12 V

Description

•Triple output with common RTN
•V2 semi-regulated
•Rugged industrial quality
•Conduction/convection cooled
•Full electronic protection
•Field-proven design in a wide range of applications
•Wide input range

This rugged, industrial quality, wide input range DC/DC converter uses field-proven technology to generate the specified output
power. The unit has two fully regulated and one tracking output. It is a mature design with a track record in numerous applications.
Cooling is via baseplate to a heat-sinking surface and by natural convection. Additional ruggedizing and conformal coating are
available for applications that require higher immunity to shock, vibration and humidity. Low component count, large design
headroom, and the use of components with established reliability result in a high MTBF. The unit is manufactured at our plant under
strict quality control. Railway grade versions of this design that meet EN 50155 are also available
