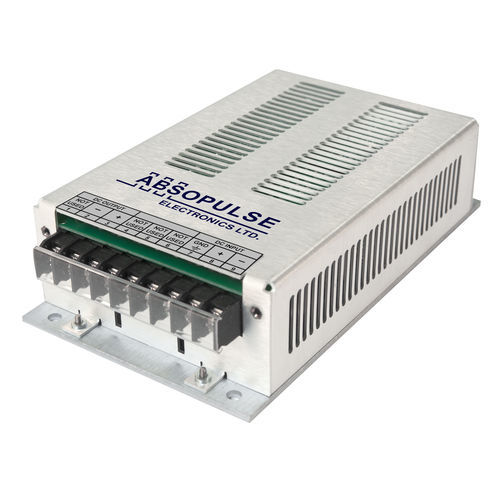

Industrial DC/DC converter BAP 150 series

industrial DC/DC converter
industrial DC/DC converter
Add to favorites
Compare this product


Other characteristics
rugged, adjustable, redundant, convection-cooled, high MTBF

150 W

Input voltage

24 V, 48 V, 125 V

Max.: 145 V

Min.: 21 V

Output voltage

24 V, 48 V, 125 V


This rugged, industrial quality DC/DC converter uses field-proven topology to generate 150W output power. It is a simpler version of the field proven BAP 180 series with cycling type overload protection. Cooling is via baseplate to a heat sinking surface and by natural convection. An optional built-in redundancy diode allows for parallel and 1+1 operation. Additional ruggedizing and conformal coating are available on request for applications that require immunity to high levels of shock, vibration and humidity. Full electronic protection, low component count, large design headrooms, and the use of components with established reliability result in a high MTBF. This unit is manufactured at our plant under strict quality control.
