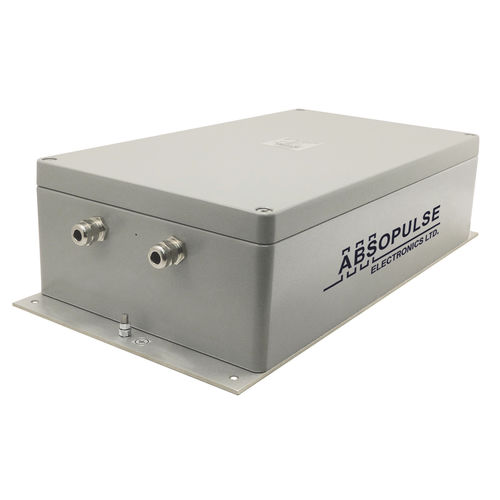

Enclosed DC/DC converter BAP 319-D4 series
regulatedindustrialrugged

enclosed DC/DC converter
enclosed DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
enclosed
Electrical characteristics
regulated
Applications
industrial
Other characteristics
rugged, high MTBF, adjustable, IP66
Power

500 W

Input voltage

Min.: 21 V

Max.: 145 V

24 V, 48 V, 125 V

Output voltage

12 V, 24 V, 48 V, 125 V

Description

The rugged industrial quality DC-DC power converters utilize field proven topology to generate the required output power. They are packaged in waterproof, rugged, die cast aluminum IP66 enclosures. The input and output are via sealed cable glands, circular connectors or custom connections. The internal boards are ruggedized and conformal coated for immunity to high levels of shock and vibration. Cooling is by internal conduction to the walls of the IP66 enclosure and by baseplate to an external chassis or cabinet wall, with additional convection via the outside surface. If installed on a heat-sinking surface, cooling is further enhanced and the converters achieve higher output power. Optional built-in redundancy diode allows for parallel and N+1 operation. Full electronic protection, low component count, large design headroom, and the use of components with established reliability contribute to high MTBF. The unit is manufactured at our plant under strict quality control. High temperature, opto-less versions of this design are also available.
