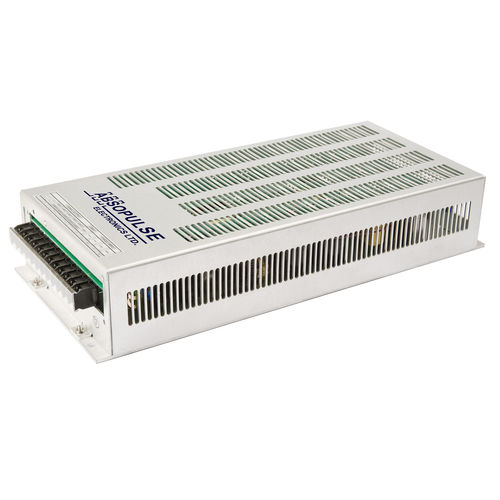

Enclosed DC/DC converter HVI 500-1K/XX-FX series
industrialsingle-outputwide input range

enclosed DC/DC converter
enclosed DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
enclosed
Applications
industrial
Other characteristics
single-output, wide input range, rugged, high input voltage, high MTBF
Power

500 W

Input voltage

Max.: 1,200 V

Min.: 800 V

1,000 V

Output voltage

36 V, 48 V, 110 V, 125 V

Description

This rugged, industrial quality DC-DC power converter utilizes field-proven HVI 801 topology to generate the required output power. It is based on a mature design concept with a track record in numerous applications. Cooling is by conduction via baseplate. Additional cooling is achieved by natural convection through the cooling slots. All heat generating components are installed on aluminum heatsink blocks which are thermally connected to the base plate. This also provides exceptional mechanical ruggedness. Conformal coating provides protection against humidity and airborne contaminants. An optional built-in redundancy diode allows for a number of units to be connected in parallel to achieve higher output power or N+1 redundancy. The output separation diode also makes the unit suitable for battery charging applications. Full electronic protection, low component count, large design headroom and the exclusive use of components with established reliability contribute to a high MTBF. The unit is manufactured at our plant under strict quality control.
