enclosed DC/DC converter / chassis-mounted / regulated / industrial
DCW 240-F3

Add to MyDirectIndustry favorites
Compare this product

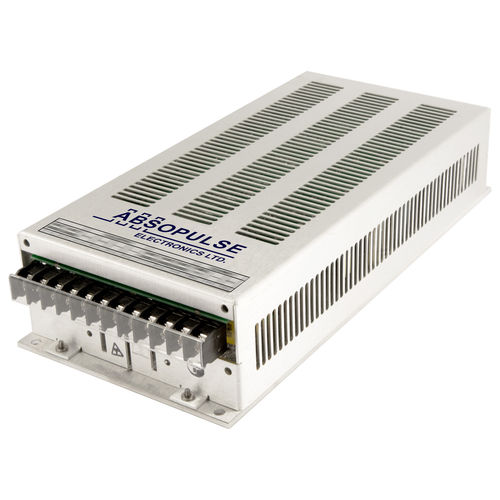

enclosed DC/DC converter / chassis-mounted / regulated / industrial enclosed DC/DC converter / chassis-mounted / regulated / industrial - DCW 240-F3
{{requestButtons}}

Characteristics

  • Configuration:

    enclosed, chassis-mounted

  • Electrical characteristics:

    regulated

  • Applications:

    industrial

  • Other characteristics:

    single-output, rugged, high MTBF, convection-cooled

  • Power:

    240 W

  • Input voltage:

    48 V, 125 V, 250 V, 350 V

  • Output voltage:

    24 V, 48 V, 110 V, 125 V

Description

•Rugged industrial quality
•Field-proven design
•Regulated output
•Conduction/convection cooling (no fans)
•Full electronic protection
•N+1 redundancy by built in diode as option

This rugged, industrial quality power converter utilizes field-proven technology to generate the required output power. It is a mature
design with a track record in numerous applications. Cooling is by conduction via baseplate. Additional cooling is achieved by natural
convection through the cooling slots. All heat generating components are installed on aluminum heatsink blocks which are thermally
connected to the base plate. This also provides exceptional mechanical ruggedness. Conformal coating provides protection against
humidity and airborne contaminants. An optional built-in redundancy diode allows for parallel and N+1 operation. A Form C output fail
alarm is available on request. Full electronic protection, low component count, large design headroom and the exclusive use of
components with established reliability contribute to a high MTBF. The unit is manufactured at our plant under strict quality control.
