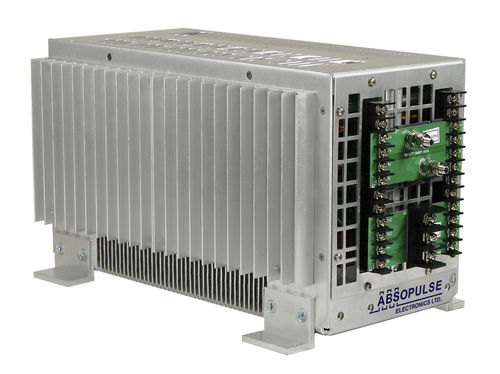

Industrial DC/DC converter BHR 65X2-4U2NF series

isolatedregulatedchassis-mounted

The BHR 65X2-4U2NF is a 1kW addition to ABSOPULSE’s line of convection cooled, high-reliability, industrial DC-DC converters. This design encompasses electrical and mechanical features that contribute to an operating life of up to 20 years. The units are suitable for heavy-duty industrial applications where fan cooling is not permitted and in which the replacement or repair of electronic equipment is logistically difficult or costly. Key Specifications •1000W industrial quality converters; •Convection cooled; •Input: 48V, 125Vdc or custom. 24Vdc input with derating; •Output: 24V, 48V, 125Vdc or custom; •A +/- dual output configuration is also possible; •Inherent redundancy; can be used as 500W power supply; •-20°C to +50°C operating temp. range – no derating; •EMI: EN55022 Class A with wide margins (curve B on request); •4U2NF chassis: 191 x 191 x 305 mm (7.5 x 7.5 x 12″) H x W x D.
