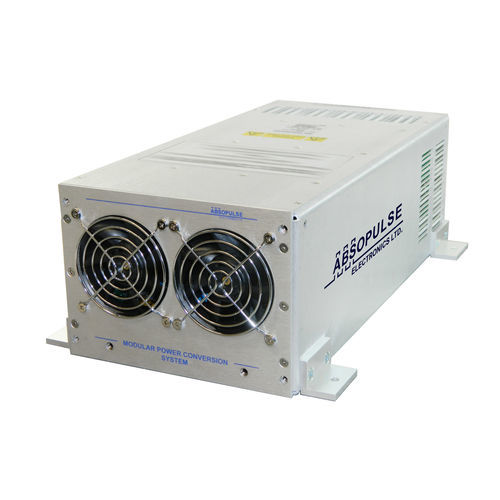

Enclosed DC/DC converter BAP 1K5 series
industrialsingle-outputrugged

enclosed DC/DC converter
enclosed DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
enclosed
Applications
industrial
Other characteristics
single-output, rugged, high MTBF, low-noise
Power

1,500 W

Input voltage

Min.: 21 V

Max.: 145 V

24 V, 48 V, 125 V

Output voltage

Min.: 12 V

Max.: 96 V

Description

This rugged, industrial quality DC/DC converter uses a field proven technology to generate up to 1500W, depending on input/output combination. It is a mature design with a track record in numerous applications. The unit is built with internal modules. Built-in fans provide sufficient airflow for operation without de-rating to the specified temperature. Full electronic protection eliminates failure due to abnormal operational conditions, including application errors. The input and output are filtered for low noise. Low component count, large design headroom, and the use of components with established reliability result in a high MTBF. Options include a Form C output fail alarm and remote shutdown. Additional ruggedizing and conformal coating are available for applications that require high immunity to shock, vibration and humidity. The unit is manufactured at our plant under strict quality control.
