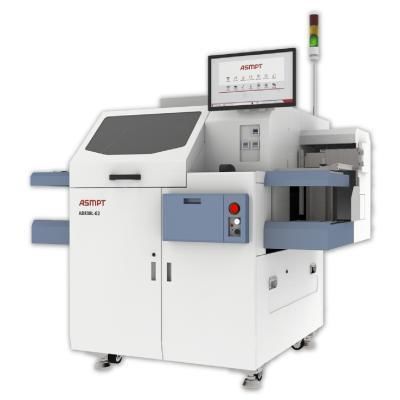

Die-attach die bonder AD838L-G2flip-chipautomatedMEMS
Add to favorites
Compare this product
Characteristics
- Technology
- flip-chip, for die-attach
- Operational mode
- automated
- Applications
- for the semiconductor industry, for sensors, MEMS
- Other characteristics
- high-accuracy, large-area
Description
Product overview
ASMPT AD838L-G2 Automatic Die Bonder for precision die placement and bonding in semiconductor and advanced packaging production. The system supports flip chip handling and extra-large substrates up to 300 mm x 100 mm. It integrates PR On The Fly (up-look PR) to improve placement accuracy and reduce bonding cycle time, and includes an automatic material handling system for factory automation integration.
Key features
Technical specifications
Applications
ASMPT AD838L-G2 Automatic Die Bonder for precision die placement and bonding in semiconductor and advanced packaging production. The system supports flip chip handling and extra-large substrates up to 300 mm x 100 mm. It integrates PR On The Fly (up-look PR) to improve placement accuracy and reduce bonding cycle time, and includes an automatic material handling system for factory automation integration.
Key features
- High-precision bonding performance with high throughput
- Flip chip handling capability
- AD838L Series exclusive material handling with dragging-free indexing
- Extra-large substrate handling up to 300 mm x 100 mm
- PR On The Fly capability (up-look PR) enhancing placement accuracy and reducing bonding cycle time
- Achieving factory automation
- Automatic material handling system
Technical specifications
- Product type: Automatic Die Bonder
- Model: AD838L-G2
- Manufacturer: ASMPT
- High-precision bonding with high throughput
- Flip chip handling capability
- Material handling: AD838L Series exclusive, dragging-free indexing
- Maximum substrate size: 300 mm x 100 mm
- PR On The Fly: up-look PR for improved placement accuracy and reduced bonding cycle time
- Automatic material handling system enabling factory automation
Applications
- Semiconductor die attach and packaging
- Flip chip assembly and bumping
- LED and optoelectronic packaging
- MEMS, sensors and precision electronic modules
- High-volume electronics manufacturing and automated production lines
